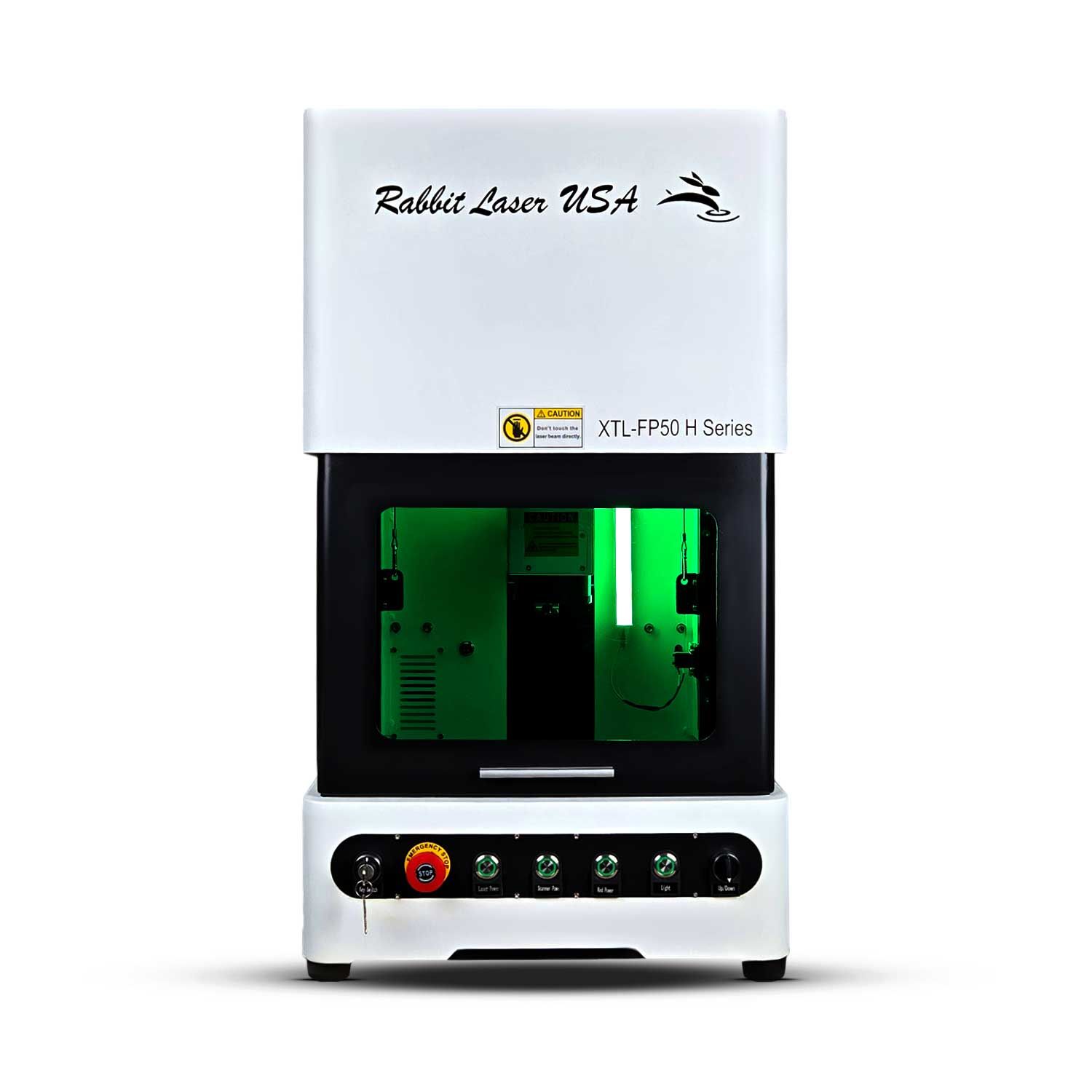

XTL-FP50 H Series Fiber Marking Laser Machine
XTL SERIES | FIBER LASER MARKING
Precision Metal Marking. Professional Results.
The Rabbit Laser USA XTL-FP50 H Series is a compact 50W fiber laser marking machine built for precise, permanent marking on metals and select plastics. Powered by a Raycus fiber source, it is well suited for logos, serial numbers, identification plates, tools, and personalized products. Its enclosed design, motorized Z-axis, and standard 110 × 110 mm marking area provide a practical system for detailed work and repeatable production.
Laser Power: 50W Raycus fiber source
Marking Area: 110 × 110 mm standard
Focusing: Motorized Z-axis
Support: Lifetime U.S.-based technical support
Built for Real Projects
Permanent Metal Marking
Create detailed logos, serial numbers, identification marks, and custom designs on compatible metals. The 50W fiber source supports everything from fine surface marking to deeper engraving applications when the material and settings allow.
Precision and Repeatability
The standard 110 × 110 mm marking area is ideal for detailed designs and smaller components. Motorized Z-axis adjustment makes focusing more convenient when changing between different parts and material heights.
Designed for Productive Workflows
From custom tools and personalized gifts to production identification and serialized parts, the XTL-FP50 provides a flexible marking system. Its enclosed cabinet helps contain the marking process, while the interlocked access door supports safe operation when used properly.
What's Included
Essential equipment included with your XTL-FP50 H Series.
50W Raycus fiber source with enclosed marking cabinet
Standard 110 × 110 mm marking lens configuration
Motorized Z-axis for convenient height adjustment and focusing
Foot pedal, external red pointer, and protective eyewear
LightBurn laser software with the first year of software updates
Important Purchasing Information
The standard machine includes a 110 × 110 mm marking lens. Optional 150 × 150 mm and 210 × 210 mm lens configurations are available for customers who need a larger marking area.
Rotary attachments and optional lens upgrades may be purchased separately. Contact Rabbit Laser USA to confirm delivery, installation, and training arrangements and costs for your location.
Technical Specifications
Model
XTL-FP50 H Series
Laser Type
Fiber laser marking system
Laser Power
50W
Laser Source
Raycus
Standard Marking Area
110 × 110 mm (4.3" × 4.3")
Optional Marking Areas
150 × 150 mm and 210 × 210 mm with compatible lens configurations
Listed Angular Resolution
12 µrad
Listed Repeat Precision
8 µrad
Z-Axis
Motorized
Controller
JCZ control system
Software
LightBurn included
Power Requirement
110 VAC, 60 Hz
Overall Dimensions
29.53" × 19.69" × 34.84"
Machine Weight
Approximately 231 lb
Materials and Applications
Metal Marking and Engraving
Suitable for many metal-marking applications involving stainless steel, aluminum, brass, copper, titanium, and coated metals. Marking results vary with material composition, surface finish, and laser settings.
Select Plastics
Some compatible plastics can be marked with a fiber laser. Results depend on material formulation, pigments, and additives. Confirm material safety and compatibility before processing.
Common Applications
Serial numbers, QR codes, barcodes, logos, industrial identification, tools, metal tags, equipment plates, engraved gifts, and personalized metal products.
See Fiber Laser Marking in Action
See a fiber laser demonstration from Rabbit Laser USA.

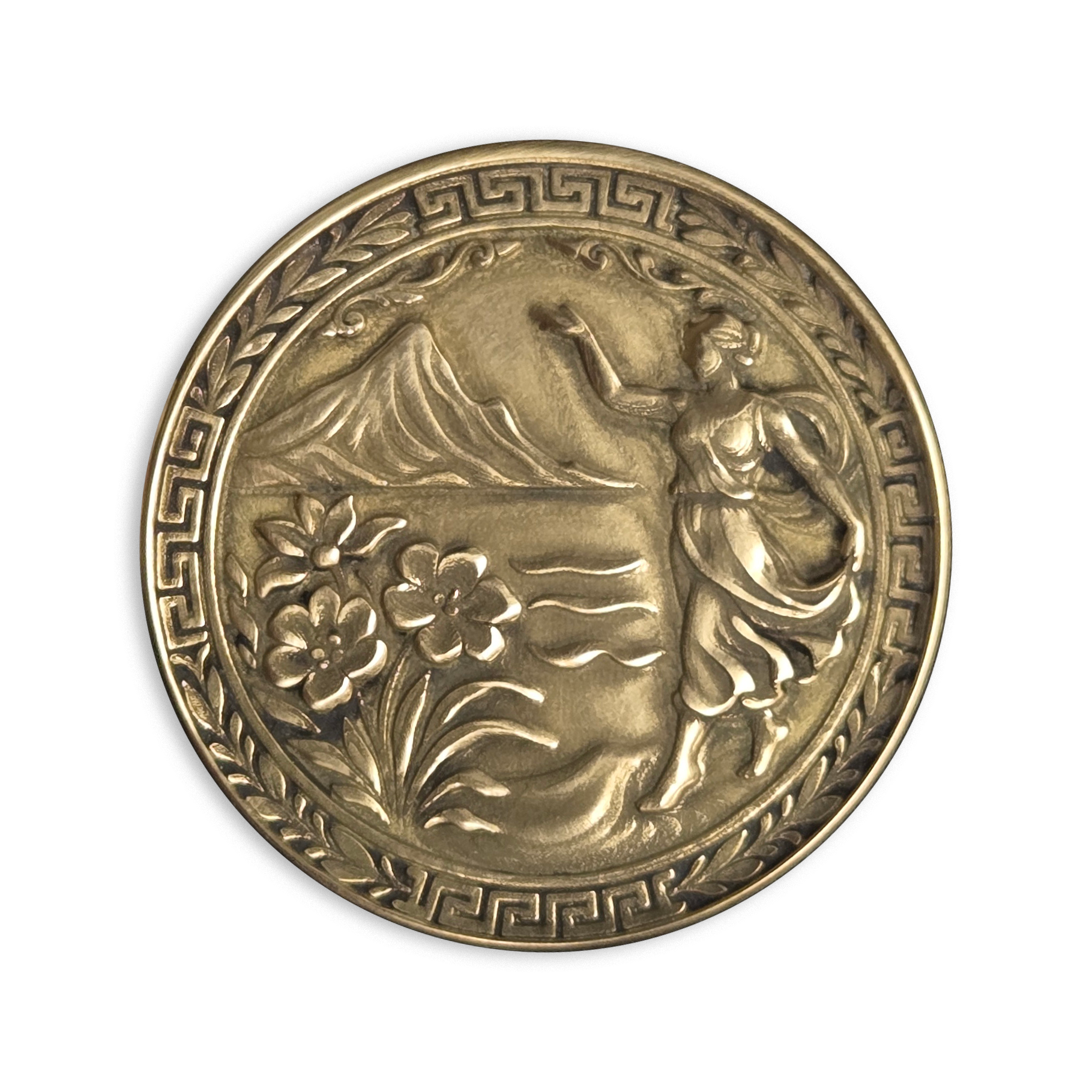

Fiber Marking Examples
Explore real examples of detailed marking and engraving created with Rabbit Laser USA fiber laser equipment.
Marking appearance and engraving depth depend on material, surface preparation, focus, and machine settings.
Frequently Asked Questions
What is the standard marking area?
The standard marking area is 110 × 110 mm (approximately 4.3" × 4.3"). Optional 150 × 150 mm and 210 × 210 mm lens configurations are available for larger marking fields.
Can this machine engrave bare metal?
Yes. Fiber lasers are designed for marking and engraving many metals, including stainless steel, aluminum, brass, and titanium. The type of mark and achievable depth depend on the metal, its finish, and the laser settings.
Is the XTL-FP50 designed for metal cutting?
The XTL-FP50 is primarily a marking and engraving machine, not a metal sheet-cutting system. Certain very thin materials may be processed with multiple passes, but it is not intended for cutting thick metal plate.
Is LightBurn included?
Yes. LightBurn software is included with your new Rabbit Laser USA fiber machine, along with the first year of software updates. The license continues to work after that period, with update renewal available separately.

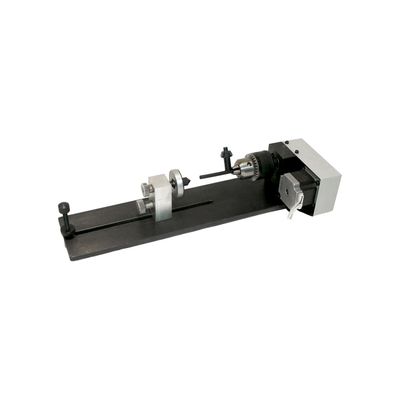

Can I mark tumblers or cylindrical parts?
A compatible rotary attachment can be used for suitable cylindrical objects, provided they fit within the machine's available clearance. Contact Rabbit Laser USA to confirm the correct rotary attachment for your application.
Does the machine require special electrical power?
The XTL-FP50 H Series is listed for 110 VAC, 60 Hz operation. Proper electrical connections, ventilation, and safe operating conditions are still required.
Support That Stays With You
Your relationship with Rabbit Laser USA doesn't end when you purchase your fiber laser.
We provide lifetime U.S.-based technical support to help with machine setup, software, marking settings, maintenance, and troubleshooting. Our team works with these machines and can help you get the results your application requires.
Have Questions Before Ordering?
Not sure which marking lens, rotary attachment, or machine configuration fits your application? Tell us what materials you're marking, the size of your parts, and the results you want to achieve.
