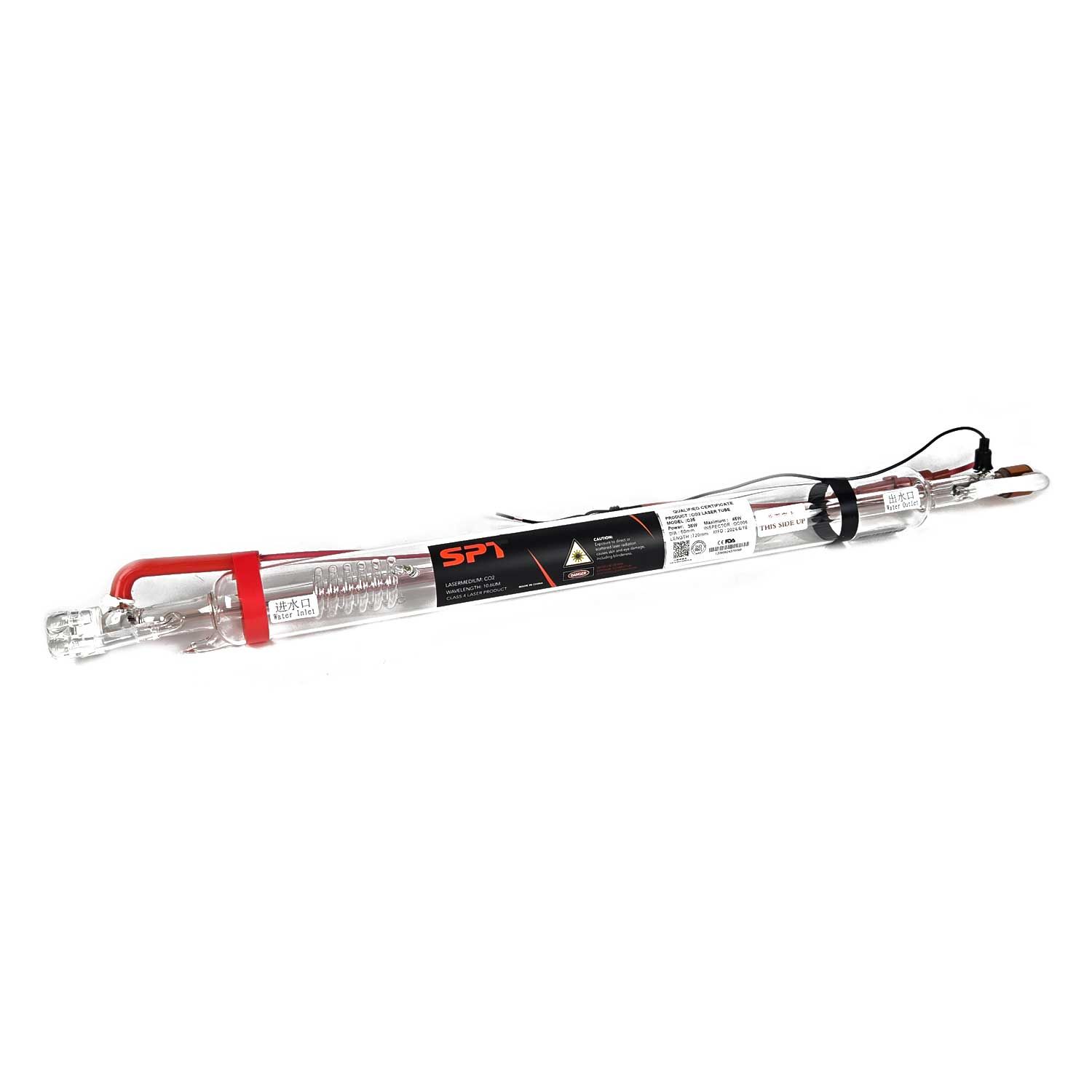

The SPT C35 is a sealed glass CO2 laser tube designed for compatible laser engraving and cutting machines. Featuring 35W rated output power and a compact 720mm length, this water-cooled tube is a replacement option for smaller CO2 laser systems.
Manufactured by SPT Laser, the C35 features a 50mm outside diameter and is designed for laser systems with compatible mounting dimensions, electrical requirements, and cooling arrangements.
Manufacturer:
SPT Laser
Model:
C35
Rated Power:
35W
Maximum Power (Tube Label):
45W
Length:
720mm
Diameter:
50mm
Cooling:
Water-cooled
Key Features
35W Rated Output:
Designed for CO2 laser engraving and cutting applications within the tube's rated operating range.
Compact Design:
The 720mm length and 50mm diameter allow installation in compatible smaller laser systems.
SPT C-Series Construction:
Sealed glass CO2 laser tube designed for consistent laser generation and operation.
Water-Cooled:
Designed to operate with a compatible circulating water-cooling system.
Replacement Application:
Suitable for replacing an existing C35 or another properly matched CO2 laser tube.
Technical Specifications
Manufacturer
SPT Laser
Model
C35
Rated Power
35W
Maximum Power (Tube Label)
45W
Tube Length
720mm
Tube Diameter
50mm
Recommended Current
15mA
Maximum Working Current
20mA
Cooling Temperature
15–25°C
Cooling Method
Circulating Water
SKU
00043
Compatibility & Installation
The SPT C35 is intended for compatible CO2 laser machines designed to accommodate a 720mm long, 50mm diameter glass laser tube.
Before ordering, verify the physical dimensions of your existing tube, available mounting space, power supply compatibility, cooling connections, and operating current requirements. Similar wattage ratings do not always indicate interchangeable laser tubes.
Important Installation & Safety Information
CO2 laser tubes operate at dangerous high voltages and produce invisible laser radiation. Installation and electrical connections should be performed by qualified personnel following the manufacturer's safety procedures.
Maintain proper cooling water circulation during operation. Do not operate the tube without adequate cooling, and protect the cooling system from freezing.
Follow SPT's recommended operating current and cooling requirements to help prevent premature tube damage.
Need Help Confirming Compatibility?
Rabbit Laser USA provides technical support to help identify compatible replacement laser tubes. Contact our team with your existing tube model and machine specifications before ordering.
