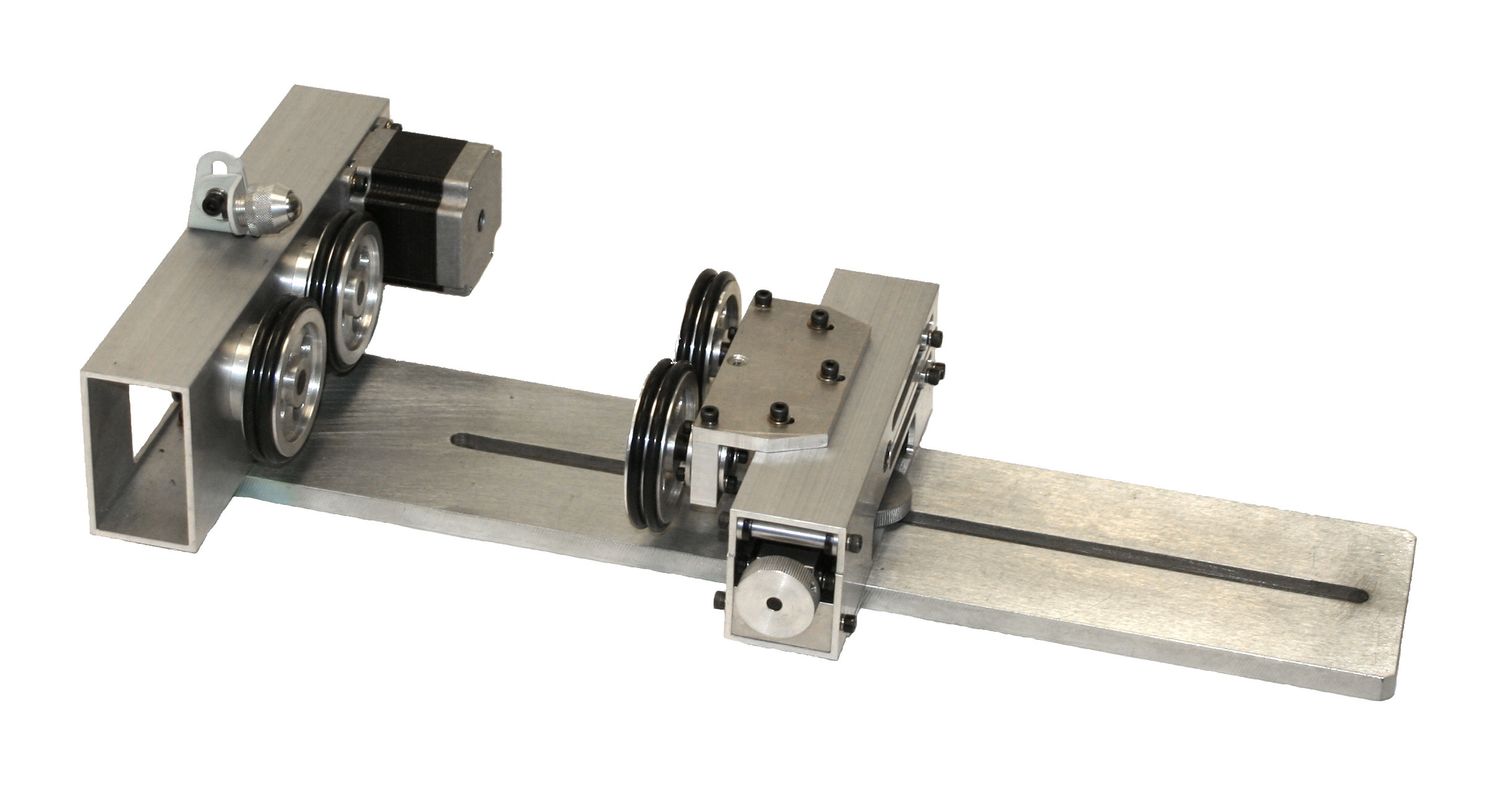

Roller Rotary Engraving Attachment

The Roller Rotary Engraving Attachment allows compatible laser machines to engrave cylindrical objects by rotating the workpiece beneath the laser. Designed for round items such as wine bottles, drinking glasses, wooden dowels, and similar objects, this roller-style rotary provides a practical solution for expanding your laser engraving capabilities.

Unlike chuck-style rotary attachments that grip the workpiece with adjustable jaws, this attachment supports the object on rollers fitted with rubber O-rings. As the rollers turn, friction causes the workpiece to rotate, allowing the laser to engrave around its curved surface. The attachment is recommended for suitable cylindrical objects with diameters greater than 1 inch.

Key Features

• Roller-style rotary attachment designed for engraving compatible cylindrical objects
• Friction-driven rotation allows the workpiece to turn without being held by chuck jaws
• Rubber O-rings provide contact between the rollers and workpiece
• Recommended for suitable round objects measuring greater than 1" in diameter
• Useful for engraving wine bottles, drinking glasses, wooden dowels, and similar cylindrical items
• Provides an alternative to chuck-style rotary attachments for objects that can rest securely on rollers
• Designed for use with laser machines supporting a compatible rotary motor connection and controller configuration

Product Specifications

Product Type	Roller Rotary Engraving Attachment
Rotary Style	Roller-Style
Rotation Method	Friction-Driven Surface Rotation
Roller Contact Material	Rubber O-Rings
Recommended Object Diameter	Greater Than 1" (Per Original Product Listing)
Workpiece Support	Object Rests on Rotary Rollers
Typical Applications	Wine Bottles, Drinking Glasses, Wooden Dowels, and Round Objects
Machine Compatibility	Laser Machines with Compatible Rotary Motor Controls and Connections
Motor Connection	Verify with Rabbit Laser USA Before Ordering
SKU	93
Quantity	1 Roller Rotary Attachment

How the Roller Rotary Attachment Works

Rotary laser engraving allows a laser machine to engrave around a curved surface by rotating the workpiece during operation. Instead of engraving only the portion of an object facing upward, the rotary turns the object so the laser can reach additional areas around its circumference.

This roller-style attachment supports the workpiece on rotating rollers equipped with rubber O-rings. As the rollers move, friction between the O-rings and the object's surface causes the workpiece to turn. The rotation is coordinated with the laser machine's engraving movements.

Consistent roller contact, correct rotary settings, and proper workpiece positioning are important for maintaining engraving alignment. Objects with uneven surfaces, unusual shapes, or poor roller contact may require additional support or a different style of rotary attachment.

Ideal Applications for Roller Rotary Engraving

Roller-style rotary attachments are especially useful when working with cylindrical objects that can rest securely on the rollers and rotate without slipping.

• Wine bottles and compatible glass bottles
• Drinking glasses and cylindrical glassware
• Wooden dowels and round wooden components
• Compatible cylindrical drinkware
• Other round objects with suitable surface contact and machine clearance

The original listing recommends objects larger than 1" in diameter. This is a general application guideline rather than a guarantee that every object above this size will fit. The maximum usable diameter depends on the rotary configuration and available space inside the laser machine.

Roller-Style vs. Chuck-Style Rotary Attachments

A roller-style rotary supports an object on powered rollers and rotates it through surface friction. This can be convenient for cylindrical workpieces that have a consistent diameter and sufficient contact with the rollers.

A chuck-style rotary uses adjustable jaws to grip and rotate the workpiece directly. Chuck-style attachments can be useful when an object's shape, size, or surface makes roller support less practical.

Choosing the correct rotary attachment depends on the workpiece diameter, shape, material, and method of support. Rabbit Laser USA can help you compare options for your specific engraving projects.

Rotary Setup & Configuration Guide

Proper rotary configuration is important for accurate engraving. Your laser machine's controller and software must be configured for the installed rotary attachment, including the appropriate rotation settings and motor connection.

View the Rotary Attachment Setup & Modification Guide (PDF)

Confirm Compatibility Before Ordering

Not every laser machine uses the same motor connections or rotary configuration. Before ordering, compare the following requirements with your existing laser equipment:

• Compatibility between the rotary motor and your machine's controller and motor driver
• Rotary connector type, pin arrangement, and electrical requirements
• Supported rotary settings in your laser engraving software
• Available workbed space and vertical clearance
• Diameter, shape, and weight distribution of the intended workpiece
• Ability to maintain adequate roller contact throughout rotation

A matching connector shape does not guarantee electrical compatibility. Confirm your machine's controller and rotary connection requirements before ordering or making modifications. Contact Rabbit Laser USA if you need help selecting the appropriate rotary attachment.

Installation & Safety

Position the rotary attachment on a stable surface inside your laser machine. Place the workpiece securely on the rollers and verify that it remains properly aligned. Confirm adequate clearance, correct laser focus, and suitable rotary settings before engraving.

Follow the laser machine manufacturer's instructions for connecting and configuring rotary attachments. Disconnect machine power before making electrical connections as required by the manufacturer. Never connect incompatible motor wiring or operate the rotary with an unstable workpiece. Verify free rotation and sufficient clearance from the laser head and surrounding machine components.
