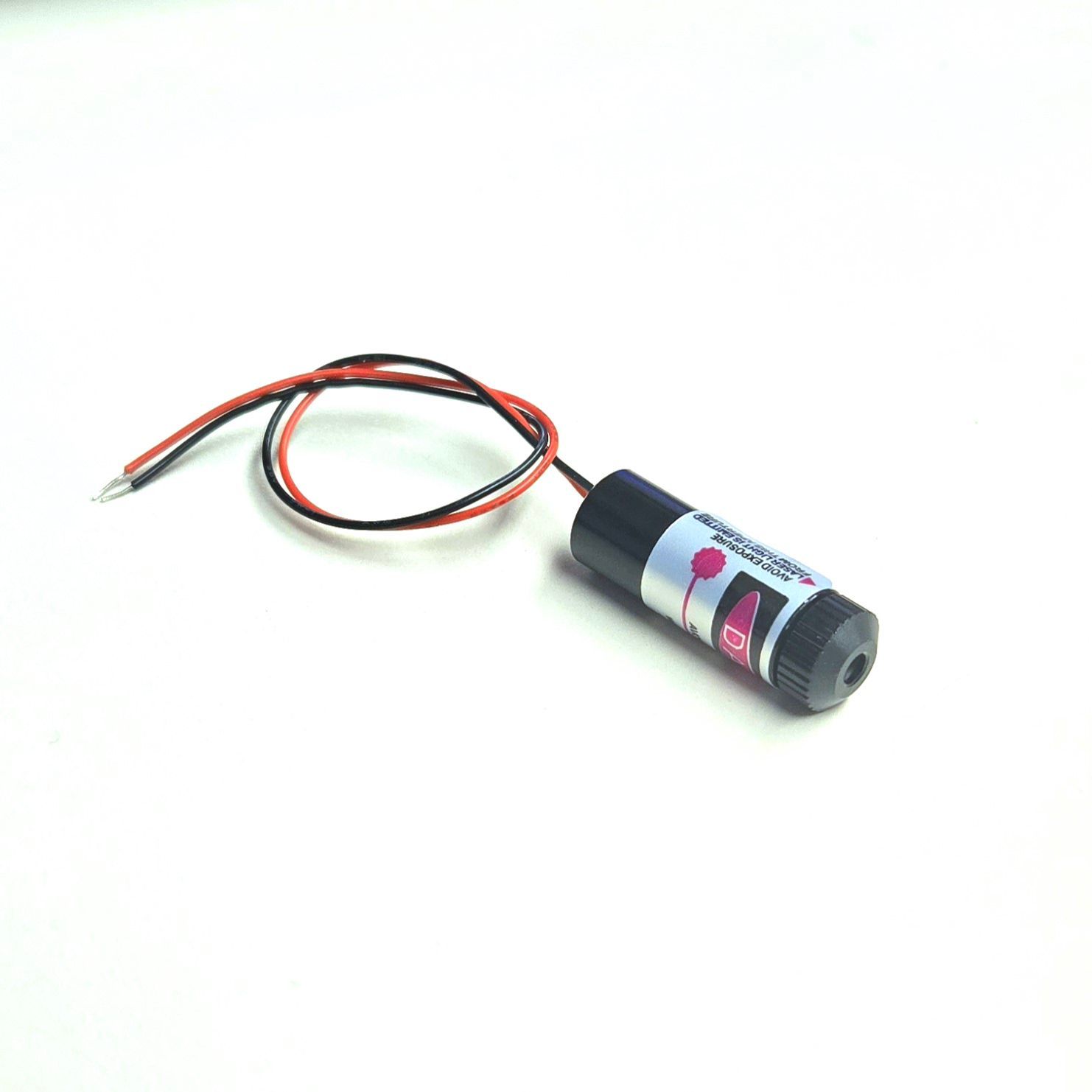

This compact red-dot laser pointer module provides a visible reference point for positioning work on compatible CO2 laser machines. Designed for use with a suitable mounting assembly, it helps operators identify a reference location before engraving or cutting.
Measuring 10 mm in diameter and 30 mm in length, the module operates on 5V DC power. It is suitable for replacing an existing pointer with matching electrical and physical specifications or adding a compatible red-dot positioning system.
Diameter:
10 mm
Length:
30 mm
Operating Voltage:
5V DC
Application:
Visible red-dot positioning
Key Features
Visible Positioning Reference
Projects a visible red dot that can assist with workpiece positioning and setup on compatible laser systems.
Compact Module Design
The cylindrical 10 × 30 mm housing is designed for installation in a compatible red-dot pointer holder or mounting assembly.
Low-Voltage Operation
Operates from a suitable regulated 5V DC power supply, making it appropriate for laser systems equipped with compatible low-voltage pointer connections.
Technical Specifications
Product Type
Red-dot laser pointer module
SKU
00026
Module Diameter
10 mm
Module Length
30 mm
Operating Voltage
5V DC
Positioning Type
Non-collinear red-dot reference
Application
Compatible CO2 laser positioning systems
Check Compatibility Before Ordering
Confirm that your machine uses a 5V DC red-dot pointer and that your existing holder accommodates a module measuring 10 mm in diameter and 30 mm in length.
This is a non-collinear pointer, meaning the visible red dot does not travel along the same optical path as the CO2 laser beam. Proper positioning and adjustment are required for an accurate reference.
Safety Note:
Use only the specified DC voltage and verify connection polarity before installation. Never look directly into the pointer beam. The red dot does not replace proper CO2 laser alignment or safety procedures.
Need Help Finding the Right Replacement?
Not sure if this red-dot module fits your laser? Contact Rabbit Laser USA with your machine model and photos of your existing pointer and mounting assembly. Our technical support team can help you identify the correct replacement.
