Rabbit Revolution Roller Rotary

The Rabbit Revolution Roller Rotary is designed to bring greater control, stability, and versatility to cylindrical laser engraving. Whether you're personalizing powder-coated tumblers, glassware, stainless steel drinkware, or wooden dowels, this adjustable roller-style rotary attachment helps maintain consistent rotation for accurate engraving.

Featuring an 18:70 gear ratio, adjustable height, silicone O-rings, and lockable positioning, the Rabbit Revolution provides the flexibility needed for a variety of projects. A built-in measurement guide, adjustable rear guide, hold-down clamp, and leveling feet make setup and repeat positioning easier for hobbyists and production shops alike.

Key Features

• 18:70 Gear Ratio: Geared drive system designed to provide controlled, consistent rotary movement during laser engraving
• Adjustable Height: Allows positioning adjustments to accommodate cylindrical objects of different diameters
• Silicone O-Rings: Provide friction-based contact to help grip and rotate the workpiece while reducing the risk of surface scratches
• Built-In Measurement Guide: Helps simplify positioning and makes it easier to return to previous setups for repeat projects
• Lockable Positioning: Secures adjustable components after setup to help maintain consistent alignment
• Hold-Down Clamp: Provides additional control when supporting compatible cylindrical workpieces
• Adjustable Rear Guide: Helps maintain proper workpiece positioning and reduce unwanted movement
• Adjustable Leveling Feet: Allow leveling of the rotary attachment on the laser machine's work surface
• Motor Configuration Options: Available with different motor configurations for compatible laser control systems

Product Specifications

Product Type	Roller-Style Rotary Engraving Attachment
Model	Rabbit Revolution
Gear Ratio	18:70
Height Adjustment	Adjustable
Roller Contact Surface	Silicone O-Rings
Positioning System	Lockable with Measurement Guide
Workpiece Support	Hold-Down Clamp and Adjustable Rear Guide
Leveling	Adjustable Feet
Motor Options	4-Wire Bipolar / 3-Wire Hybrid (UVW)
Listed Standard Connector	4-Pin (confirm for selected motor configuration)
Typical Object Diameter	Greater Than 1" (subject to object shape and machine clearance)
Applications	Rotary Laser Engraving of Compatible Cylindrical Objects
SKU	00021
Quantity	1 Roller Rotary Attachment

How the Rabbit Revolution Roller Rotary Works

A roller-style rotary attachment allows compatible cylindrical objects to rotate beneath the laser while remaining supported by powered rollers. As the rollers turn, friction between the silicone O-rings and the workpiece causes the object to rotate, allowing the laser to engrave around its curved surface.

Unlike a chuck-style rotary that grips an object mechanically, the Rabbit Revolution supports the workpiece on its rollers. This makes it useful for engraving items such as tumblers, glasses, bottles, and wooden dowels without requiring the object to be clamped by its opening.

The geared drive system helps provide controlled movement, while the adjustable supports and positioning features help maintain alignment. Proper setup and sufficient contact between the rollers and workpiece are essential for consistent engraving results.

Adjustable Positioning for Repeat Projects

When engraving multiple tumblers or similar objects, repeatable positioning can save valuable setup time. The Rabbit Revolution features a built-in measurement guide and lockable adjustment points to help users return to previously established positions.

The adjustable height, rear guide, and hold-down clamp provide additional control when positioning different cylindrical shapes. Adjustable feet allow the rotary to be leveled on the machine's work surface, helping reduce alignment issues during engraving.

For repeat production, verify the workpiece position, laser focus, and rotary settings before beginning each new engraving job.

Ideal Rotary Engraving Applications

The Rabbit Revolution is well suited for a variety of cylindrical laser engraving projects, including:

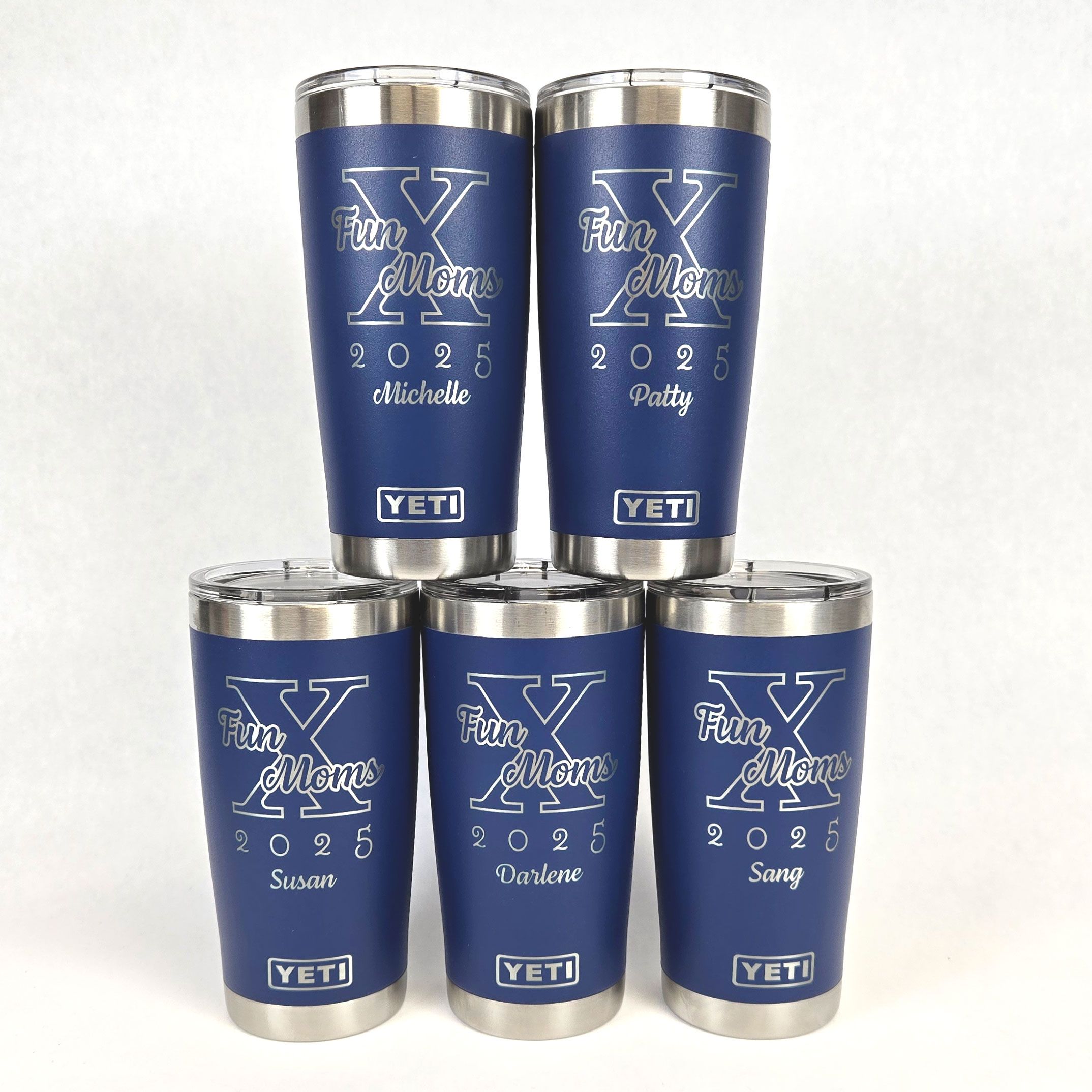

• Powder-coated tumblers and insulated drinkware
• Glass cups, bottles, and other compatible glassware
• Stainless steel tumblers and cylindrical drinkware
• Wooden dowels and other round wooden objects
• Compatible cylindrical components measuring over 1" in diameter

Actual compatibility depends on the object's diameter, shape, weight distribution, surface contact, and available clearance inside the laser machine. Irregular or tapered objects may require additional setup adjustments.

See the Rabbit Revolution in Action

Watch the Rabbit Revolution Roller Rotary demonstration to see its adjustable components and rotary engraving capabilities.

The Rabbit Revolution helps make cylindrical laser engraving more manageable, from single custom projects to repeated production work.

Confirm Compatibility Before Ordering

The Rabbit Revolution is offered with motor configurations for different laser control systems. Before ordering, confirm the following specifications with your existing laser machine:

• Motor type required by your machine's controller and motor driver
• Rotary connection type, pin arrangement, and wiring configuration
• Compatibility with the selected 4-wire bipolar or 3-wire hybrid motor option
• Available workbed space and vertical clearance for the rotary and workpiece
• Supported rotary settings in your machine's controller and engraving software
• Diameter, shape, and stability of the objects you intend to engrave

The standard listing identifies a 4-pin connection for Ruida-based CO2 laser systems. However, connector appearance alone does not guarantee electrical compatibility, and different motor configurations may require different connections. Confirm the correct configuration before ordering or connecting the rotary to your machine.

Installation & Safety

Place the Rabbit Revolution on a stable work surface inside your laser machine. Use the adjustable feet to level the rotary, then position the rollers and supporting components to accommodate your workpiece. Secure all adjustable components and confirm that the object rotates freely before beginning engraving.

Follow your laser machine manufacturer's rotary connection and setup procedures. Disconnect machine power before making electrical connections as directed by the manufacturer. Never connect an incompatible motor or wiring configuration. Verify laser focus, available clearance, and workpiece stability before operating the machine.
