PAD3 Operator Interface Connection Cable
LASER PARTS | MOTION CONTROL
PAD3 Operator Interface Connection Cable
The PAD3 Operator Interface Connection Cable is a replacement cable intended for compatible PAD3 operator control interfaces used in laser engraving and cutting machines.

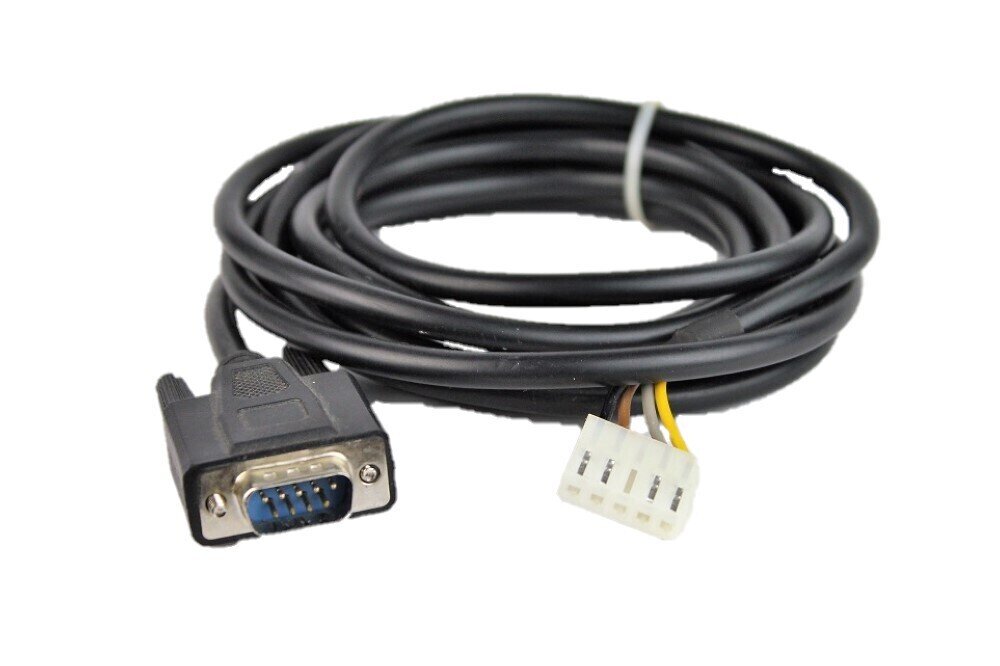

Featuring a flexible black cable with a D-sub-style connector on one end and a white multi-pin connector on the other, this replacement component is intended for restoring the connection between a compatible operator interface and its control system.
Key Features
- Replacement Connection Cable: Intended for compatible PAD3 operator interface installations.
- Preassembled Design: Includes connectors at both ends for connection to matching equipment.
- Flexible Cable: Designed for routing between compatible control components.
- Maintenance & Repair: Suitable for replacing an existing cable when the connector arrangement and wiring specifications match.
Product Specifications
| Product Type | Operator Interface Cable |
| Interface | PAD3 |
| Connector 1 | 9-Pin D-Sub Male (DE-9) |
| Connector 2 | White 5-Position Connector Housing |
| Wire Count | 4 Conductors |
| Wire Colors | Black, Brown, Gray, Yellow |
| Cable Color | Black |
| Application | Compatible PAD3 operator interface systems |
| Quantity | 1 Connection Cable |
Compatibility
This cable is intended for compatible PAD3 operator interfaces. It is not a universal connection cable for all laser controllers or control panels.
Before ordering, compare both connectors with your existing cable and confirm the cable length, pin configuration, and compatibility with your controller. Similar-looking connectors do not necessarily use the same wiring.
Installation & Replacement
- Disconnect the machine from power before removing or replacing the operator interface cable.
- Compare the original cable's connector orientation and wiring arrangement with the replacement.
- Connect both ends securely without forcing the connectors.
- Route the cable away from moving components, sharp edges, and high-voltage wiring.
- Verify normal operator interface operation before returning the machine to service.
Rabbit Laser USA can help you identify compatible replacement cables and motion-control components. If you're unsure whether this cable fits your machine, contact our technical support team with your controller model and photos of the existing connectors.
Phone: 513-217-5707
Email: support@RabbitLaserUSA.com
