Mini-Chuck-Style Rotary Engraving Attachment

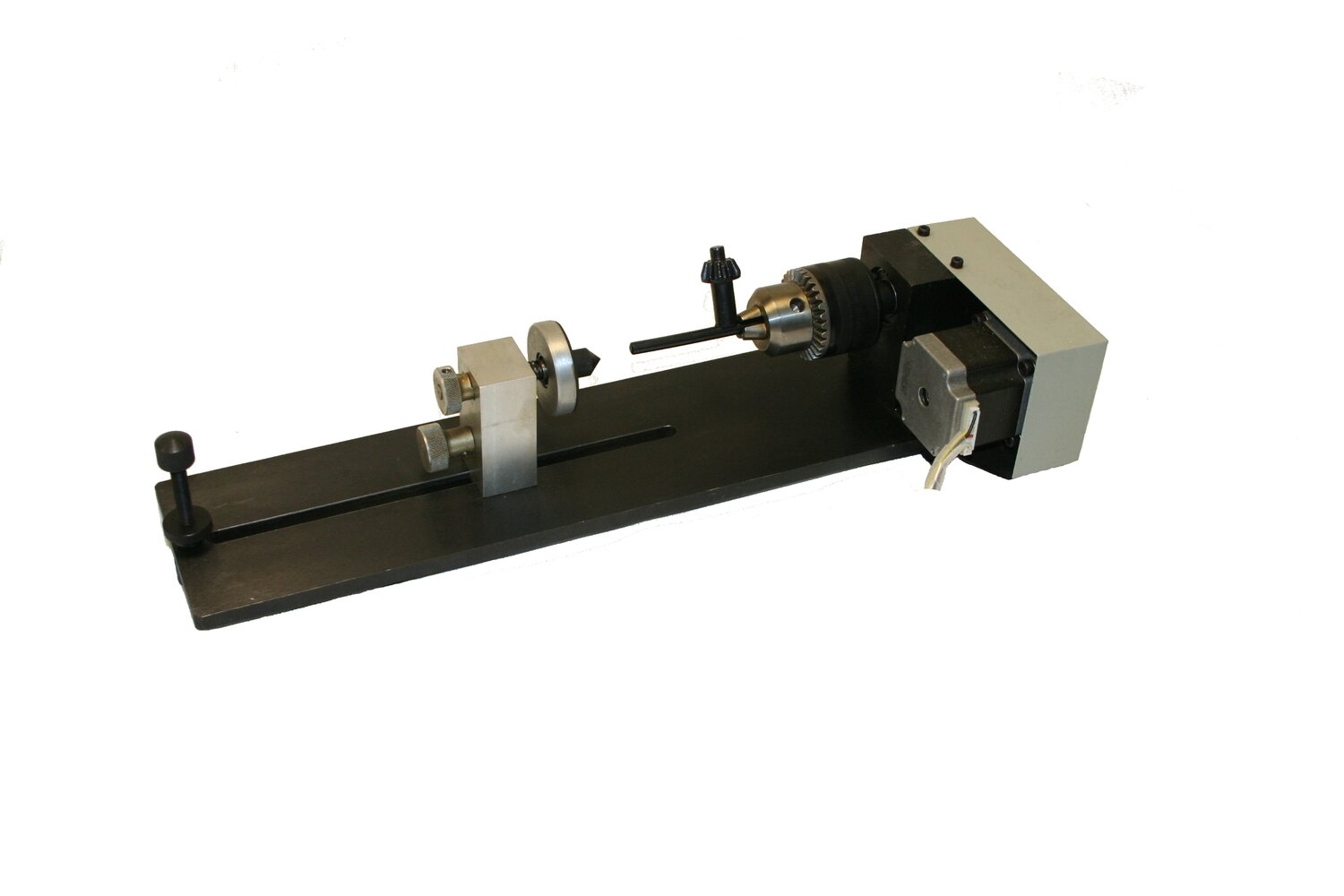

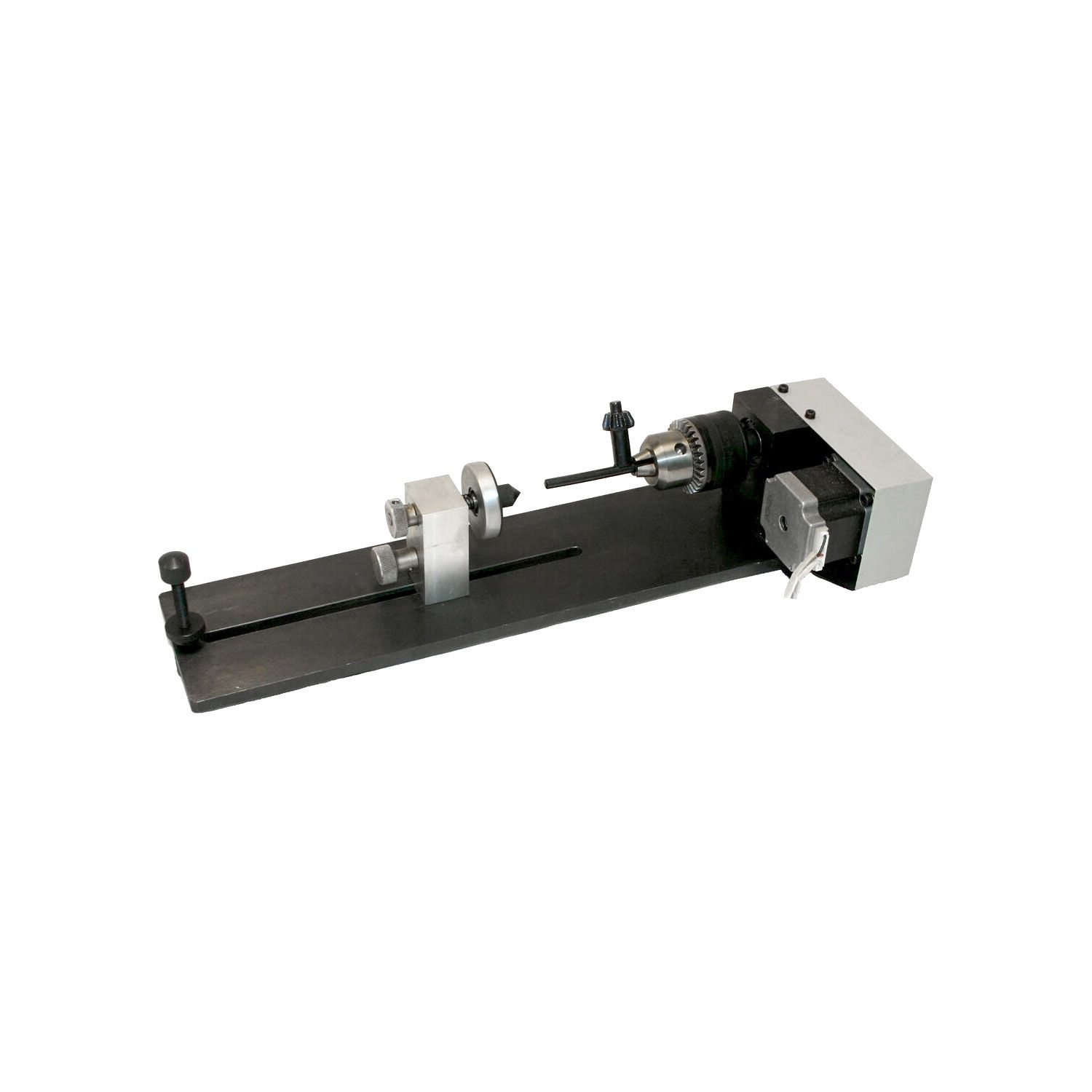

The Mini-Chuck-Style Rotary Engraving Attachment is designed for laser engraving small cylindrical objects that require secure positioning and controlled rotation. Featuring a 1/2" Jacobs-style chuck, this attachment helps hold compatible workpieces such as wooden dowels, pencils, pens, narrow pipes, and rods while the laser engraves around their curved surfaces.

Unlike roller-style rotary attachments that support objects on rotating wheels, this chuck-style rotary grips the workpiece directly. This makes it a practical choice for detailed engraving on small-diameter objects where maintaining alignment is especially important. Proper chuck fit, machine compatibility, and laser focus are essential for reliable results.

Key Features

• Designed for engraving small cylindrical objects with compatible laser engraving machines
• Features a 1/2" Jacobs-style chuck for securely gripping suitable workpieces
• Chuck-driven rotation allows the workpiece to turn beneath the laser during engraving
• Suitable for compatible wooden dowels, pencils, pens, narrow pipes, and rods
• Provides an alternative to roller-style attachments for smaller objects that require direct gripping
• Designed to help maintain consistent positioning during rotational engraving
• Useful for personalized gifts, small decorative items, and specialty cylindrical engraving projects

Product Specifications

Product Type	Mini-Chuck Rotary Engraving Attachment
Chuck Style	Jacobs-Style Chuck
Listed Chuck Size	1/2" (12.7 mm)
Gripping Method	Adjustable Chuck Jaws
Rotation Type	Chuck-Driven Rotary Motion
Primary Application	Laser Engraving of Small Cylindrical Objects
Typical Workpieces	Pencils, Pens, Wooden Dowels, Narrow Pipes, and Rods
Maximum Workpiece Diameter	Depends on Gripping Method and Machine Clearance; Requires Verification
Machine Compatibility	Compatible Laser Machines with Suitable Rotary Motor Connections and Controls
SKU	95
Quantity	1 Mini-Chuck-Style Rotary Attachment

How the Mini-Chuck-Style Rotary Works

Rotary engraving allows a laser machine to engrave around the curved surface of an object by rotating the workpiece as the laser operates. For small cylindrical items, maintaining proper alignment is important because even minor movement can affect the finished design.

The Mini-Chuck-Style Rotary uses an adjustable Jacobs-style chuck to grip a compatible object. During engraving, the chuck rotates the workpiece under the control of the laser machine's rotary drive system, allowing the laser to mark or engrave around its circumference.

Because the object is held directly by the chuck rather than resting on rollers, this attachment can be useful for small workpieces that may be difficult to position on a conventional roller rotary. Proper gripping pressure, alignment, and rotary settings remain essential.

Understanding the 1/2" Jacobs-Style Chuck

The Jacobs-style chuck uses adjustable jaws to grip the end of a compatible cylindrical workpiece. This allows objects such as pencils, wooden dowels, and narrow rods to be held during rotary laser engraving.

The listed 1/2" chuck size should not be confused with the maximum outside diameter of every object that can be engraved. Actual compatibility depends on the diameter of the section being gripped, the chuck's verified jaw capacity, the available workpiece clearance, and any required support. The maximum supported workpiece diameter should be confirmed before ordering.

Confirm Compatibility Before Ordering

Before purchasing the Mini-Chuck-Style Rotary, confirm the following specifications with your laser machine and intended workpieces:

• Rotary motor and connector compatibility with your laser controller
• Required motor wiring and electrical specifications
• Chuck gripping capacity for the intended workpiece
• Workpiece length, diameter, and available clearance inside the laser machine
• Supported rotary configuration in your engraving software
• Ability to secure and rotate the object without excessive movement or slipping

Not all laser machines use the same rotary motor connections or settings. The chuck size alone does not establish compatibility with every workpiece. Confirm your machine's controller, rotary connection, and intended object dimensions before ordering.

Installation & Safety

Position the rotary attachment on a stable surface inside your laser machine. Secure the workpiece in the chuck using appropriate gripping pressure, ensuring that the object is properly aligned and does not shift during rotation. Check the laser's focal distance before engraving.

Follow your laser machine manufacturer's instructions when connecting and configuring a rotary attachment. Disconnect power before making electrical connections when required by the manufacturer. Verify that the workpiece rotates freely without contacting surrounding components, and never operate the machine with an unsecured object or incompatible motor connection.
