Main Door Safety Switch – Magnetic Reed Switch, 36-Inch Wire

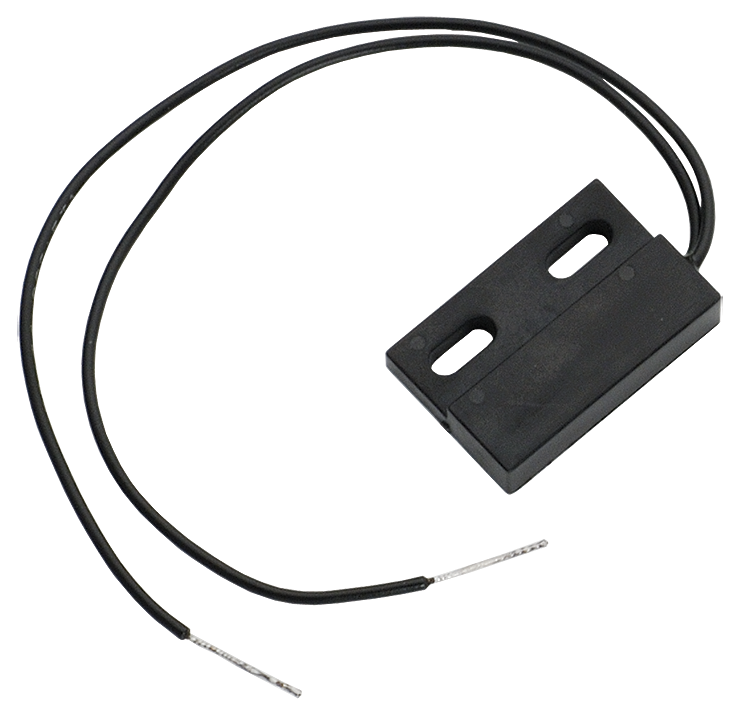

This main door safety switch is a magnetic reed switch designed for use in compatible CO2 laser engraving and cutting machine door-interlock systems. It features a compact rectangular housing, two mounting slots, and a 36-inch attached wire for connecting to the machine's control or interlock circuit.

Magnetic reed switches detect the presence or absence of a nearby magnetic field. When installed with a compatible magnet and properly connected to the machine's interlock system, the switch can provide an electrical signal indicating the position of the machine's access door.

The 36-inch wire provides additional reach for installations where the switch is positioned farther from the electrical connection point. This makes it a practical replacement for compatible machines requiring a longer lead than the 12-inch version.

Important: The switch's contact configuration and operating behavior must match the original component. Verify compatibility before ordering, especially when replacing a switch used in a machine safety circuit.

Key Features

• Magnetic Reed Switch: Responds to a magnetic field from a compatible actuator or magnet.
• 36-Inch Wire: Provides additional cable reach for compatible machine installations.
• Non-Contact Operation: Detects magnetic proximity without requiring a mechanical push-button actuator.
• Compact Housing: Rectangular black housing designed for mounting near a machine access door.
• Slotted Mounting Holes: Two elongated mounting openings allow positioning and adjustment.
• Two-Wire Connection: Attached leads are designed for connection to a compatible electrical circuit.
• Replacement Component: Suitable for replacing an existing magnetic door switch with matching electrical and physical specifications.

Product Specifications

Product Type	Magnetic Reed Door Switch
Application	Compatible Laser Machine Door-Interlock Circuits
Operating Method	Magnetic Proximity Detection
Wire Length	36 Inches (Approximately 914mm)
Wire Configuration	2-Wire
Wire Color	Black
Connection Style	Attached Wire Leads
Housing Color	Black
Mounting Design	2 Slotted Mounting Holes
Contact Configuration	Verify Against Original Switch
Quantity Included	1 Magnetic Reed Switch with Attached Wire
Rabbit Laser USA SKU	102

How a Magnetic Door Switch Works

A magnetic reed switch contains electrical contacts that respond to a nearby magnetic field. In a typical laser machine door-interlock arrangement, the switch is mounted to the machine cabinet and a compatible magnet is positioned on the moving door.

As the door opens or closes, the distance between the magnet and switch changes. This changes the switch's electrical state according to its contact configuration.

The machine's control or interlock circuit can use this signal to determine whether the door is in the required position for operation.

Important: Magnetic reed switches are available in normally open (NO), normally closed (NC), and other configurations. The required contact behavior must match the original machine wiring and control system.

A door switch alone does not provide a complete safety system. Proper interlock operation depends on the complete machine design, wiring, controller configuration, and associated protective components.

Compatibility

This switch is intended for compatible CO2 laser engraving and cutting machines that use a magnetic reed switch for main door position detection.

Before ordering, compare the replacement with your existing switch:

• Magnetic reed switch contact configuration
• Switch housing shape and physical dimensions
• Mounting-hole spacing and mounting orientation
• 36-inch wire length and installation requirements
• Number of electrical leads and connection method
• Required magnet type, position, and operating distance
• Electrical ratings and machine interlock requirements

Important: Switches that appear identical may operate differently depending on their internal contact arrangement. Do not assume that a similar-looking switch is electrically interchangeable.

Rabbit Laser USA also offers a 12-inch main door safety switch for compatible installations requiring a shorter lead. Select the version that matches your original component and machine wiring.

Installation & Safety

• Turn off and disconnect electrical power to the laser machine before inspecting or replacing the door switch.
• Confirm that the replacement switch has the correct contact configuration and electrical ratings.
• Mount the switch securely in the intended location using suitable hardware.
• Position the switch and matching magnet according to the machine's original installation requirements.
• Route the attached wiring away from moving parts, sharp edges, and areas where it may be pinched.
• Make electrical connections according to the machine's wiring diagram.
• Inspect all connections and confirm that no exposed conductors can cause an electrical short.
• After installation, perform the manufacturer-specified interlock tests to verify that the machine responds correctly to opening and closing the door.

Safety Note: Door-interlock components are part of the laser machine's protective system. Never bypass, disable, or defeat a machine safety interlock to continue operation.

If the machine does not respond correctly during interlock testing, stop using the laser until the problem has been identified and corrected.
