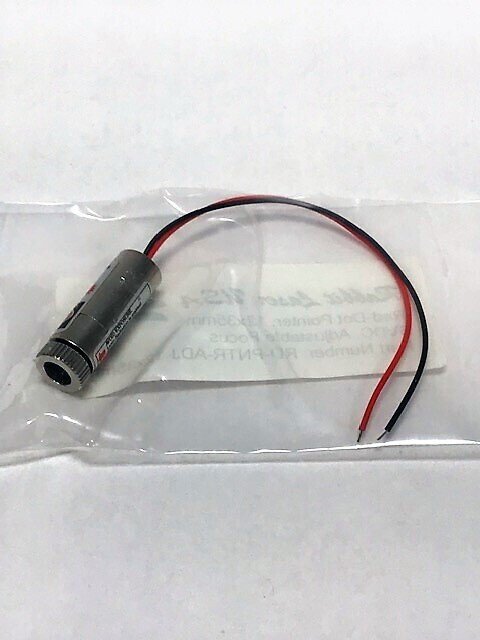

CO2 Laser Red Dot Pointer Module – 5V DC (12 x 35.5mm)
This red dot laser pointer module provides a visible positioning reference for compatible CO2 laser engraving and cutting machines. Because the CO2 laser beam is invisible to the human eye, a red dot pointer helps operators identify a reference point when positioning materials on the work surface.
Measuring 12mm in diameter and 35.5mm in length, this module operates on 5V DC power. It can replace an existing compatible pointer or be installed as part of a properly configured positioning system.
Product Type:
Red dot laser pointer module
Operating Voltage:
5V DC
Module Diameter:
12mm
Module Length:
35.5mm
Application:
Compatible CO2 laser positioning systems
Key Features
Visible Positioning Reference
Projects a visible red dot onto the work surface to assist with material placement and identifying a reference location.
12mm Diameter Housing
Designed for compatible 12mm mounting arrangements, with a 35.5mm housing length that should be considered when checking installation clearance.
5V DC Operation
Operates using a compatible regulated 5V DC power source or suitable machine connection.
Replacement or Retrofit Component
Suitable for replacing a matching red dot pointer module or adding a positioning reference to a machine with the appropriate mounting and electrical connections.
Technical Specifications
Product Type
Red dot laser pointer module
SKU
223
Operating Voltage
5V DC
Module Diameter
12mm
Module Length
35.5mm
Pointer Type
Visible red dot
Application
Compatible CO2 laser positioning systems
Check Compatibility Before Ordering
Confirm that your machine supports a 12mm diameter pointer module with a 35.5mm housing length. Verify mounting clearance, holder dimensions, and the availability of a compatible 5V DC electrical connection before ordering.
Important:
This red dot pointer is non-collinear with the CO2 laser beam. It follows a separate optical path and requires proper adjustment to provide a useful positioning reference. The visible dot does not directly represent the CO2 cutting beam.
Installation & Safety:
Disconnect machine power before installation. Verify wiring and polarity before connecting the module. Never look directly into the red laser beam. The pointer is a positioning aid and does not replace proper laser alignment or safety procedures.
Need Help With Compatibility?
Not sure which red dot pointer fits your laser? Contact Rabbit Laser USA with your machine model and information about your existing pointer or mounting arrangement. Our technical support team can help identify the appropriate replacement component.
