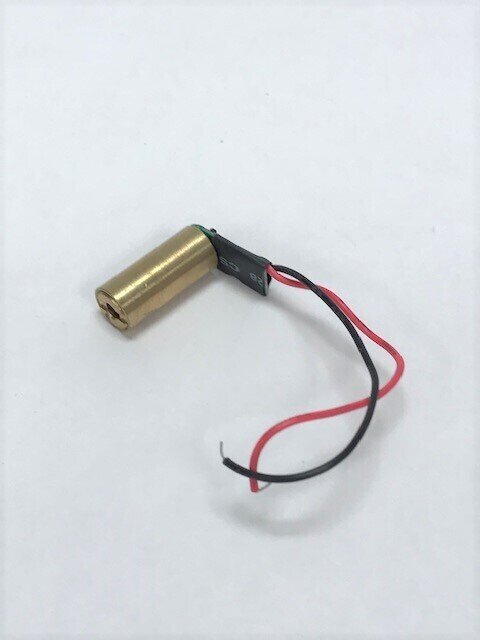

CO2 Laser Red Dot Pointer Module – 5V DC (10 x 22mm)
This red dot laser pointer module provides a visible positioning reference for compatible CO2 laser engraving and cutting machines. Since the CO2 laser beam is invisible to the human eye, a red dot pointer can help operators position materials and identify a reference point on the work surface.
Measuring 10mm in diameter and 22mm in length, this compact module operates on 5V DC power. It can be used as a replacement for an existing red dot pointer or as part of a compatible positioning system.
Product Type:
Red dot laser pointer module
Operating Voltage:
5V DC
Module Diameter:
10mm
Module Length:
22mm
Application:
Compatible CO2 laser positioning systems
Key Features
Visible Positioning Reference
Projects a visible red dot onto the work surface to help operators identify a reference location when positioning materials.
Compact Module Design
The 10mm diameter and 22mm length allow installation in compatible laser pointer holders and mounting brackets.
5V DC Operation
Designed to operate using an appropriate regulated 5V DC power supply or compatible machine connection.
Replacement or Retrofit Component
Suitable for replacing a compatible pointer module or adding a positioning reference when the machine supports the required mounting and electrical connections.
Technical Specifications
Product Type
Red dot laser pointer module
SKU
224
Operating Voltage
5V DC
Module Diameter
10mm
Module Length
22mm
Pointer Type
Visible red dot
Application
Compatible CO2 laser positioning systems
Check Compatibility Before Ordering
Confirm that your laser machine supports a 10mm diameter pointer module and provides a suitable mounting location and 5V DC electrical connection.
Important:
This pointer is non-collinear with the CO2 laser beam. The visible red dot follows a separate path and may not indicate the exact location of the CO2 beam without proper adjustment and calibration.
Installation & Safety:
Disconnect power before installation. Verify the required wiring and polarity before connecting the module. Never look directly into the red laser beam. The pointer is a positioning aid and does not replace proper laser alignment or safety procedures.
Need Help With Compatibility?
Not sure whether this red dot pointer fits your laser machine? Contact Rabbit Laser USA with your machine model and information about your existing pointer or mounting arrangement. Our technical support team can help identify the appropriate replacement components.
