910-MXL Timing Belt – Closed Loop

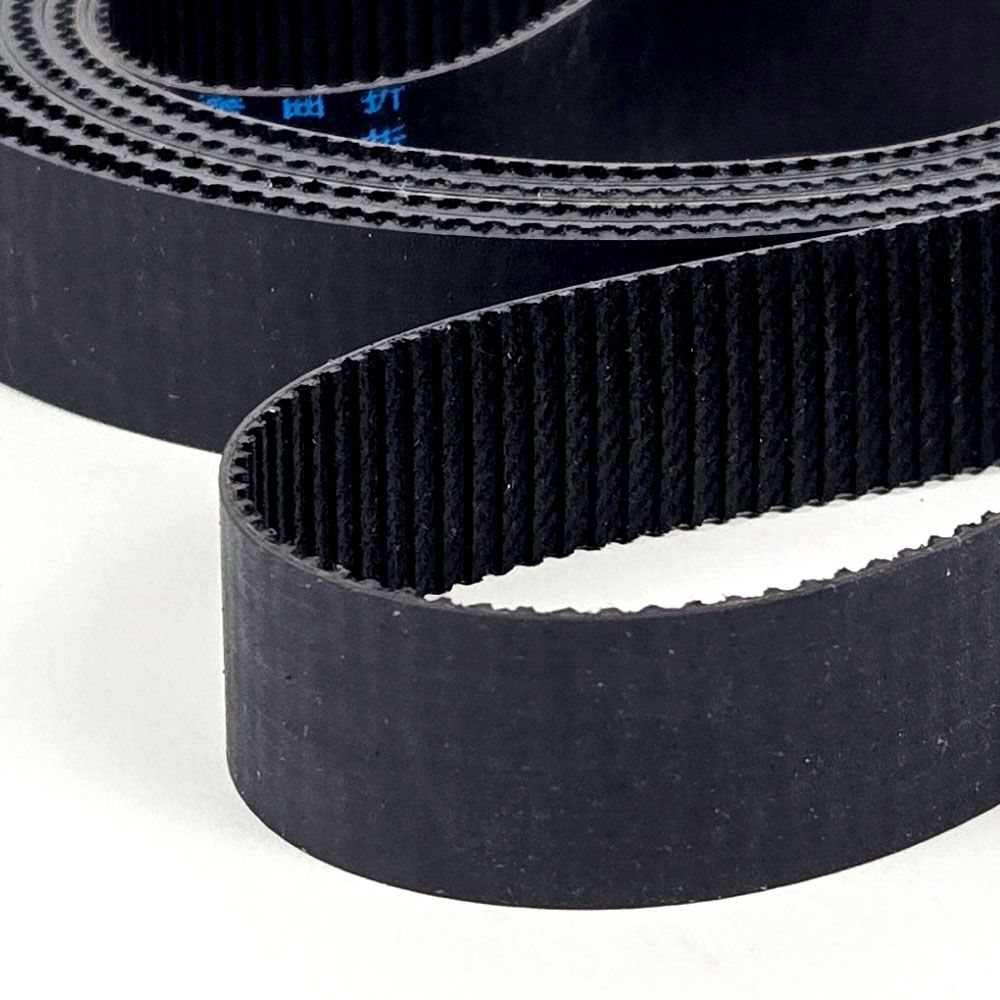

The 910-MXL Timing Belt is a closed-loop synchronous drive belt designed for compatible laser engraving and cutting machine motion systems. Featuring an MXL trapezoidal tooth profile with a 2.032 mm pitch, this belt provides positive engagement with matching timing pulleys for synchronized mechanical movement.

Constructed from neoprene rubber with fiberglass reinforcement, this timing belt combines flexibility with resistance to stretching during operation. Its 15 mm width and continuous closed-loop design make it a practical replacement component for compatible laser machine drive assemblies and other precision motion systems requiring consistent belt-driven positioning.

Key Features

• Closed-loop synchronous timing belt for compatible laser machine motion systems
• MXL trapezoidal tooth profile with a 2.032 mm pitch
• 2,310.38 mm pitch length with 1,137 evenly spaced teeth
• 15 mm belt width for matching timing pulleys
• Neoprene rubber construction provides flexibility during repeated rotation
• Fiberglass reinforcement helps resist stretching under normal operating loads
• Positive tooth engagement helps maintain synchronized mechanical movement
• Suitable for replacing matching timing belts in laser machines and precision motion equipment

Product Specifications

Product Type	Synchronous Timing Belt
Belt Designation	910-MXL
Tooth Profile	MXL (Mini Extra Light), Trapezoidal
Pitch Length	2,310.38 mm (90.96")
Belt Width	15 mm (Approximately 0.59")
Tooth Pitch	2.032 mm (0.080")
Tooth Count	1,137 Teeth
Belt Material	Neoprene Rubber
Reinforcement	Fiberglass Core
Belt Construction	Closed Loop / Endless
Application	Compatible Timing Belt Drive Systems
SKU	185
Quantity	1 Timing Belt

How the MXL Timing Belt Works

Timing belts transfer mechanical motion between rotating pulleys using evenly spaced teeth. Unlike smooth belts that depend primarily on friction, synchronous timing belts engage matching pulley grooves to maintain a consistent rotational relationship between connected components.

The MXL profile features a 2.032 mm tooth pitch and a trapezoidal tooth design. When paired with matching MXL pulleys, this arrangement helps provide controlled movement. The neoprene body allows the belt to flex around the pulleys, while fiberglass reinforcement helps maintain its length during normal operation.

Proper belt tension, pulley alignment, and tooth engagement are essential for accurate motion. Worn or incorrectly installed timing belts can cause vibration, skipped teeth, and positioning errors that affect machine performance.

Understanding MXL Belt Specifications

MXL timing belts use an imperial tooth pitch of 0.080 inches, equivalent to 2.032 mm. This standardized pitch determines the spacing between adjacent teeth and must match the pulley tooth profile.

The 910-MXL designation identifies a belt with a pitch length of 90.96 inches (2,310.38 mm) and 1,137 teeth. Pitch length is measured along the belt's pitch line, not around its outside surface.

When choosing a replacement timing belt, the tooth profile, pitch length, belt width, and tooth count all matter. Correctly matching these dimensions helps maintain proper pulley engagement and reliable movement throughout the drive system.

Confirm Compatibility Before Ordering

Not all timing belts are interchangeable. Before purchasing a replacement, compare the following specifications with your existing belt and pulley system:

• Exact belt designation and tooth profile
• Pitch length and total tooth count
• Tooth pitch and pulley compatibility
• Belt width and pulley groove dimensions
• Belt material and reinforcement requirements
• Required belt tension and drive configuration

MXL timing belts use a different tooth pitch and geometry than 3M and GT2 timing belts. These belt types are not interchangeable, even when their dimensions appear similar. Always select a replacement that matches the requirements of your machine's motion system.

Installation & Safety

Before replacing a timing belt, turn off the laser machine and disconnect power according to the manufacturer's service instructions. Release belt tension using the appropriate adjustment method and inspect the existing pulleys for worn teeth, damage, or accumulated debris.

Install the replacement belt with its teeth correctly seated in the pulley grooves. Ensure proper pulley alignment and adjust belt tension according to the machine manufacturer's recommendations. Avoid forcing the belt over pulley flanges or applying excessive tension. Check for smooth movement before returning the machine to operation.
