90-Degree Airflow Direction for Laser Air Assist Systems

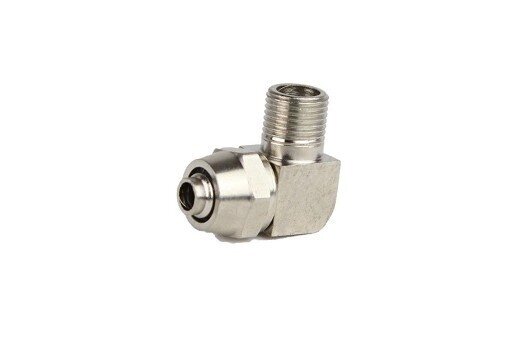

This 90-degree nickel-plated copper air nozzle is designed to direct airflow through a right-angle connection in compatible CO2 laser air assist systems. Its compact elbow design makes it useful where space is limited or where the air supply needs to be redirected around nearby components.
Constructed from nickel-plated copper, this nozzle provides a durable, corrosion-resistant fitting for compatible air assist applications. Its defined connection dimensions help customers identify the correct replacement for their existing equipment.
Material:
Nickel-plated copper
Configuration:
90-degree elbow
Nozzle End:
9.47 mm OD / 6.44 mm ID
Air Tubing Connection:
6.72 mm OD / 4 mm ID
Application:
Compatible laser air assist systems
Key Features
90-Degree Elbow Design
Redirects airflow at a right angle, making it practical for air assist systems with limited installation space.
Nickel-Plated Copper Construction
Combines copper construction with a nickel-plated surface for corrosion resistance and durability.
Compact Air Connection
Provides a compact connection between compatible air tubing and nozzle components without requiring a straight-line air supply path.
Replacement Air Assist Component
A practical replacement for worn, damaged, or missing right-angle air fittings with matching dimensions.
Technical Specifications
Product Type
90-degree air nozzle
SKU
212
Material
Nickel-plated copper
Connection Angle
90 degrees
Nozzle End Outside Diameter (OD)
9.47 mm
Nozzle End Inside Diameter (ID)
6.44 mm
Air Tubing Connection Outside Diameter (OD)
6.72 mm
Air Tubing Connection Inside Diameter (ID)
4 mm
Application
Compatible CO2 laser air assist systems
Check Compatibility Before Ordering
Air nozzle dimensions and connection styles can vary between laser machines. Compare the outside and inside diameters of both connection ends with your existing nozzle before ordering.
Fitment Note:
The listed measurements describe the connection dimensions. Confirm the mounting style and any required thread specifications before purchasing.
Need Help Finding the Right Replacement?
Not sure whether this 90-degree air nozzle fits your laser machine? Contact Rabbit Laser USA with your machine model and a photo of your existing nozzle or air connection. Our technical support team can help you identify the correct replacement.
