640-MXL Timing Belt – 15 mm Width

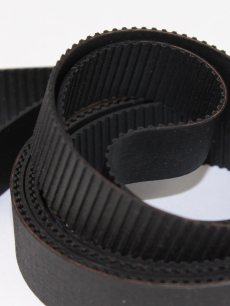

The 640-MXL Timing Belt is a closed-loop drive belt designed for compatible laser machine motion systems. Featuring a listed 15 mm width and an MXL tooth profile, this belt transfers rotational movement between matching timing pulleys to help maintain consistent mechanical positioning.

Constructed from neoprene rubber with a fiberglass core, this belt combines flexibility with internal reinforcement to help resist stretching during operation. Whether replacing a worn belt or maintaining an existing laser engraving and cutting machine, matching the belt's pitch length, width, and tooth profile is essential for reliable performance.

Key Features

• Closed-loop timing belt for compatible laser machine motion and drive systems
• 15 mm listed belt width
• MXL tooth profile designed for engagement with matching timing pulleys
• Standard MXL tooth pitch of 2.032 mm (0.080")
• Standard 640-MXL designation corresponds to 80 teeth and a 162.56 mm pitch length
• Neoprene rubber construction provides flexibility for repeated pulley rotation
• Fiberglass reinforcement helps resist elongation during normal operation
• Toothed design helps maintain synchronized movement between compatible drive components

Product Specifications

Product Type	Timing Belt
Product Designation	640-MXL
Standard 640-MXL Pitch Length	162.56 mm (6.4")
Belt Width	15 mm (Approximately 0.59")
Standard MXL Tooth Pitch	2.032 mm (0.080")
Expected Tooth Count	80 Teeth
Listed Belt Thickness	1.70 mm (Approximately 0.067")
Belt Material	Neoprene Rubber
Reinforcement	Fiberglass Core
Belt Construction	Closed Loop / Endless
Application	Compatible Timing Belt Drive Systems
SKU	183
Quantity	1 Timing Belt

How the MXL Timing Belt Works

Timing belts transfer mechanical movement between pulleys using evenly spaced teeth. These teeth engage matching grooves in the pulleys, allowing the driving and driven components to maintain a consistent rotational relationship.

MXL timing belts use a standard tooth pitch of 2.032 mm (0.080"). The small tooth profile is designed for compatible precision motion systems where controlled movement and consistent pulley engagement are important.

Proper belt tension, pulley alignment, and matching tooth geometry are essential for reliable operation. Incorrect belt selection or excessive wear can lead to skipped teeth, vibration, positioning errors, and premature component wear.

Understanding 640-MXL Belt Dimensions

MXL timing belts are identified using an inch-based pitch length designation. A standard 640-MXL belt has a pitch length of 6.4 inches (162.56 mm) and contains 80 teeth spaced 2.032 mm apart.

The original Rabbit Laser USA listing identifies this product with a 640 mm length and an approximate 2 mm pitch. However, these measurements do not agree with the standard 640-MXL designation. The actual belt markings and tooth count must be verified before confirming its replacement dimensions.

Pitch length is measured along the belt's pitch line, not simply around its outside surface. For accurate replacement, match the original belt's designation, tooth count, width, and tooth profile rather than relying on approximate dimensions alone.

Confirm Compatibility Before Ordering

Not every timing belt is interchangeable, even when two belts appear similar. Before purchasing a replacement, compare the following specifications with your original belt:

• Exact belt designation and tooth profile
• Pitch length and total tooth count
• Tooth pitch and pulley compatibility
• Belt width and pulley groove dimensions
• Belt thickness and construction
• Required belt tension and drive configuration

MXL timing belts use a different tooth pitch and profile from 3M timing belts. These types are not interchangeable. Confirm the stocked belt's actual dimensions before ordering, particularly because the original product length conflicts with the standard MXL designation.

Installation & Safety

Before replacing a timing belt, turn off the laser machine and disconnect power according to the manufacturer's service instructions. Release belt tension using the proper adjustment method and inspect the existing pulleys for worn teeth, damage, or debris.

Install the replacement belt with the teeth correctly engaged and the pulleys properly aligned. Adjust belt tension according to the equipment manufacturer's requirements. Avoid excessive tension or forcing the belt onto the pulleys. Verify smooth movement before returning the machine to operation.
