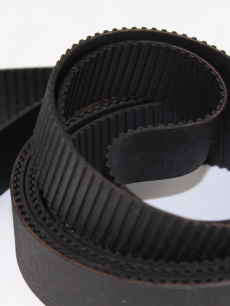

600-MXL Timing Belt – 152.4 mm × 15 mm

The 600-MXL Timing Belt is a closed-loop synchronous drive belt designed for compatible laser engraving and cutting machine motion systems. The standard 600-MXL designation identifies a 152.4 mm (6.00") pitch length and 75 teeth, with a 2.032 mm tooth pitch. Its MXL trapezoidal tooth profile provides positive engagement with matching timing pulleys for controlled mechanical movement.

Manufactured using a flexible neoprene rubber construction with fiberglass tensile reinforcement, MXL timing belts help maintain consistent movement during repeated pulley rotation. Proper replacement requires matching the belt's pitch length, width, tooth count, and tooth profile with the original machine drive assembly.

Key Features

• Closed-loop synchronous timing belt for compatible precision motion systems
• Standard 152.4 mm pitch length and 75-tooth configuration
• 15 mm belt width as identified in the Rabbit Laser USA product listing
• MXL trapezoidal tooth profile with a 2.032 mm pitch
• Positive tooth engagement with appropriately sized MXL timing pulleys
• Neoprene rubber construction provides flexibility during repeated pulley rotation
• Fiberglass tensile reinforcement helps resist stretching and maintain dimensional stability
• MXL rubber belt designs commonly use nylon fabric tooth coverings for wear resistance
• Nominal MXL tooth height of approximately 0.51 mm
• Continuous closed-loop construction without joined belt ends

Product Specifications

Product Type	Synchronous Timing Belt
Belt Designation	600-MXL
Tooth Profile	MXL (Mini Extra Light), Trapezoidal
Standard Pitch Length	152.4 mm (6.00")
Listed Belt Width	15 mm (Approximately 0.59")
Tooth Pitch	2.032 mm (0.080")
Standard Tooth Count	75 Teeth
Nominal MXL Profile Thickness	Approximately 1.14 mm (0.045")
Nominal Tooth Height	0.51 mm (Approximately 0.020")
Belt Material	Neoprene Rubber
Reinforcement	Fiberglass Tensile Cords
Typical MXL Tooth Covering	Nylon Fabric
Tooth Arrangement	Single-Sided
Belt Construction	Closed Loop / Endless
Primary Application	Compatible Timing Belt Drive Systems
SKU	182
Quantity	1 Timing Belt

How the MXL Timing Belt Works

Synchronous timing belts transfer mechanical movement between rotating pulleys through evenly spaced teeth. Unlike smooth belts that rely primarily on friction, toothed belts engage matching pulley grooves to maintain a consistent rotational relationship between connected drive components.

The MXL profile features small, trapezoidal teeth spaced 2.032 mm apart. These teeth engage matching MXL pulley grooves to transfer motion. The flexible rubber body allows repeated movement around the pulleys, while fiberglass tensile cords help resist belt elongation.

Proper belt tension, pulley alignment, and tooth engagement help maintain consistent mechanical movement. An incorrectly sized or worn belt may cause skipped teeth, vibration, positioning errors, or premature wear.

Understanding 600-MXL Belt Specifications

MXL timing belts use an imperial tooth pitch of 0.080 inches, equivalent to 2.032 mm. Their trapezoidal tooth profile differs from the rounded tooth geometry used by HTD timing belts.

Under the standard imperial MXL designation, 600 represents a 6.00-inch pitch length rather than a 600 mm belt length. With 75 teeth spaced 0.080 inches apart, the belt has a pitch circumference of 6.00 inches, or 152.4 mm.

Pitch length is measured along the belt's pitch line, not its outside surface. Selecting a replacement requires matching the pitch length, tooth count, tooth profile, and width with the original equipment.

Confirm Compatibility Before Ordering

Not all timing belts are interchangeable. Before purchasing a replacement, compare the following specifications with your existing belt and pulley system:

• Original belt marking and MXL tooth profile
• 152.4 mm standard pitch length and 75-tooth count
• 2.032 mm tooth pitch and matching pulley tooth geometry
• 15 mm listed belt width and pulley clearance
• Actual belt thickness and tooth dimensions
• Closed-loop construction and required belt tension

MXL timing belts are not interchangeable with HTD 3M or HTD 5M timing belts. Their tooth spacing and geometry differ. Confirm that the supplied belt matches your existing drive system before installation.

Installation & Safety

Before replacing a timing belt, turn off the laser machine and disconnect power according to the manufacturer's service instructions. Release the existing belt tension and inspect pulleys, idlers, and mounting components for wear, damage, or accumulated debris.

Install the replacement belt with its teeth correctly seated in the pulley grooves. Check pulley alignment and adjust belt tension according to the equipment manufacturer's specifications. Avoid excessive tension or forcing the belt over pulley flanges. Verify smooth movement before returning the machine to operation.
