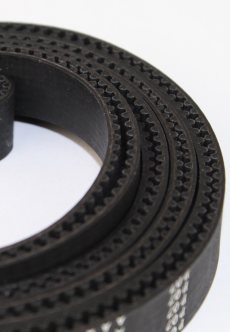

240-3M Timing Belt – 240 mm × 15 mm

The 240-3M Timing Belt is a closed-loop synchronous drive belt designed for compatible laser engraving and cutting machine motion systems. Featuring a 240 mm pitch length, 15 mm width, and 3 mm tooth pitch, this belt uses an HTD curvilinear tooth profile to engage matching timing pulleys for controlled, synchronized mechanical movement.

Constructed from neoprene rubber with fiberglass tensile reinforcement and a protective nylon tooth covering, this belt combines flexibility with dimensional stability and wear resistance. Its 80-tooth design and continuous closed-loop construction make it a practical replacement for compatible laser machine drive assemblies and other precision motion equipment.

Key Features

• Closed-loop synchronous timing belt for compatible laser machine motion systems
• 240 mm pitch length and 15 mm belt width
• HTD 3M curvilinear tooth profile with a 3 mm pitch
• 80 evenly spaced teeth for positive engagement with matching timing pulleys
• Neoprene rubber construction provides flexibility during repeated pulley rotation
• Fiberglass tensile cords help resist stretching and maintain dimensional stability
• Nylon fabric tooth covering provides a wear-resistant contact surface
• 2.40 mm nominal overall thickness with 1.22 mm tooth height
• Single-sided tooth arrangement with continuous closed-loop construction
• Suitable for replacing matching timing belts in laser machines and precision motion equipment

Product Specifications

Product Type	Synchronous Timing Belt
Belt Designation	240-3M-15
Tooth Profile	HTD 3M Curvilinear
Pitch Length	240 mm (Approximately 9.45")
Belt Width	15 mm (Approximately 0.59")
Tooth Pitch	3 mm (Approximately 0.118")
Tooth Count	80 Teeth
Nominal Overall Thickness	2.40 mm (Approximately 0.095")
Nominal Tooth Height	1.22 mm (Approximately 0.048")
Belt Material	Neoprene Rubber
Reinforcement	Fiberglass Tensile Cords
Tooth Covering	Nylon Fabric
Tooth Arrangement	Single-Sided
Belt Construction	Closed Loop / Endless
Primary Application	Compatible Timing Belt Drive Systems
SKU	188
Quantity	1 Timing Belt

How the 3M Timing Belt Works

Synchronous timing belts transmit mechanical movement between rotating pulleys through evenly spaced teeth. Unlike smooth belts that rely primarily on friction, toothed belts engage matching pulley grooves to maintain a consistent relationship between connected drive components.

The HTD 3M profile uses rounded, curvilinear teeth spaced 3 mm apart. These teeth engage matching timing pulleys to transfer motion. The neoprene rubber body allows the belt to flex during operation, while internal fiberglass tensile cords help resist stretching and maintain consistent belt positioning.

A nylon fabric covering protects the tooth surfaces during repeated pulley engagement. Proper belt tension, pulley alignment, and tooth engagement help maintain consistent movement and reduce premature wear.

Understanding 240-3M Belt Specifications

The 240-3M-15 designation identifies three important dimensions: a 240 mm pitch length, a 3 mm tooth pitch, and a 15 mm belt width.

With 80 teeth spaced 3 mm apart, this belt has a total pitch length of 240 mm. Pitch length is measured along the belt's pitch line rather than directly around its outside surface.

The HTD 3M tooth profile features rounded teeth designed to engage matching curvilinear timing pulleys. Correct tooth geometry, pitch length, width, and tooth count are essential when replacing an existing timing belt.

Confirm Compatibility Before Ordering

Not all timing belts are interchangeable. Before purchasing a replacement, compare the following specifications with your existing belt and pulley system:

• Original belt designation and tooth profile
• 240 mm pitch length and 80-tooth count
• 3 mm tooth pitch and matching pulley geometry
• 15 mm belt width and pulley clearance
• Closed-loop belt construction
• Required belt tension and drive configuration

HTD 3M timing belts use different tooth spacing and geometry from MXL and HTD 5M timing belts. These belt types are not interchangeable. Select a replacement belt that matches the specifications of your machine's motion system.

Installation & Safety

Before replacing a timing belt, turn off the laser machine and disconnect power according to the manufacturer's service instructions. Release existing belt tension and inspect the pulleys, idlers, and mounting components for worn teeth, damage, or accumulated debris.

Install the replacement belt with its teeth properly seated in the pulley grooves. Ensure correct pulley alignment and adjust belt tension according to the equipment manufacturer's specifications. Avoid forcing the belt over pulley flanges or applying excessive tension. Check for smooth, unobstructed movement before returning the machine to operation.
