2160-3M Timing Belt – 2160 mm × 15 mm

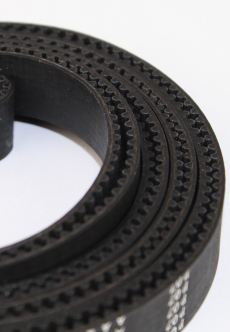

The 2160-3M Timing Belt is a closed-loop synchronous drive belt designed for compatible laser engraving and cutting machine motion systems. Featuring a 2,160 mm pitch length, 15 mm width, and 3 mm tooth pitch, this belt delivers synchronized mechanical movement through positive engagement with matching timing pulleys.

Constructed from neoprene rubber with fiberglass tensile reinforcement, this belt combines flexibility with resistance to stretching during operation. Its HTD 3M curvilinear tooth profile and continuous closed-loop design make it a practical replacement for compatible laser machine drive assemblies and other precision motion systems.

Key Features

• Closed-loop synchronous timing belt for compatible laser machine motion systems
• 2,160 mm pitch length and 15 mm belt width
• HTD 3M curvilinear tooth profile with a 3 mm pitch
• 720 evenly spaced teeth for engagement with matching timing pulleys
• Neoprene rubber construction provides flexibility during repeated rotation
• Fiberglass tensile cords help resist stretching and maintain dimensional stability
• 2.40 mm overall belt thickness
• Single-sided tooth design with continuous closed-loop construction
• Suitable for replacing matching timing belts in laser machines and other precision motion equipment

Product Specifications

Product Type	Synchronous Timing Belt
Belt Designation	2160-3M-15
Tooth Profile	HTD 3M Curvilinear
Pitch Length	2,160 mm (Approximately 85.04")
Belt Width	15 mm (Approximately 0.59")
Tooth Pitch	3 mm (Approximately 0.118")
Tooth Count	720 Teeth
Overall Belt Thickness	2.40 mm (Approximately 0.094")
Belt Material	Neoprene Rubber
Reinforcement	Fiberglass Tensile Cords
Tooth Arrangement	Single-Sided
Belt Construction	Closed Loop / Endless
Primary Application	Compatible Timing Belt Drive Systems
SKU	198
Quantity	1 Timing Belt

How the 3M Timing Belt Works

Synchronous timing belts transfer mechanical movement between rotating pulleys using evenly spaced teeth. Unlike smooth belts that rely primarily on friction, toothed belts engage matching pulley grooves to maintain a consistent rotational relationship between connected components.

The HTD 3M profile features rounded, curvilinear teeth spaced 3 mm apart. This design engages matching timing pulleys to support controlled mechanical movement. The neoprene body provides flexibility while internal fiberglass tensile cords help maintain belt length during normal operation.

Correct belt tension, pulley alignment, and tooth engagement are important for maintaining accurate motion. Worn or incorrectly installed belts can cause vibration, skipped teeth, positioning errors, and premature wear of drive components.

Understanding 2160-3M Belt Specifications

The 2160-3M-15 designation identifies three important dimensions: a 2,160 mm pitch length, a 3 mm tooth pitch, and a 15 mm belt width.

With 720 teeth spaced 3 mm apart, the belt has a total pitch length of 2,160 mm. Pitch length is measured along the belt's pitch line rather than directly around its outside surface.

The HTD 3M tooth profile uses rounded teeth designed for matching curvilinear timing pulleys. The tooth shape, pitch length, width, and number of teeth must match the existing drive system for proper replacement.

Confirm Compatibility Before Ordering

Not all timing belts are interchangeable. Before purchasing a replacement, compare the following specifications with your existing belt and pulley system:

• Original belt designation and tooth profile
• 2,160 mm pitch length and 720-tooth count
• 3 mm tooth pitch and compatible pulley geometry
• 15 mm belt width and pulley clearance
• Closed-loop belt construction
• Required belt tension and drive configuration

The HTD 3M tooth profile differs from MXL and other timing belt profiles. Matching the tooth pitch alone does not guarantee compatibility. Select a replacement belt that matches the dimensions and tooth geometry required by your machine's motion system.

Installation & Safety

Before replacing a timing belt, turn off the laser machine and disconnect power according to the manufacturer's service instructions. Release existing belt tension and inspect the pulleys, idlers, and belt mounting components for wear, damage, or accumulated debris.

Install the replacement belt with its teeth properly engaged in the pulley grooves. Ensure the pulleys are correctly aligned and adjust belt tension according to the equipment manufacturer's specifications. Avoid forcing the belt onto pulleys or applying excessive tension. Verify smooth, unobstructed movement before returning the machine to operation.
