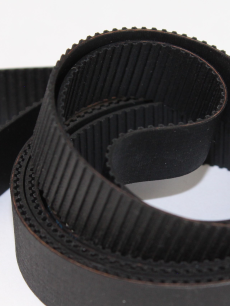

1445-MXL Timing Belt – Closed Loop

The 1445-MXL Timing Belt is a closed-loop synchronous drive belt designed for compatible laser engraving and cutting machine motion systems. Featuring an MXL trapezoidal tooth profile with a precise 2.032 mm pitch, this belt provides positive engagement with matching timing pulleys for synchronized mechanical movement.

Constructed from synthetic neoprene, this timing belt combines flexibility with a continuous toothed design for dependable motion transmission. Its 15 mm width, 3,669.79 mm pitch length, and 1,806 teeth make it a replacement option for compatible laser machine drive assemblies and other precision motion systems.

Key Features

• Closed-loop synchronous timing belt for compatible laser machine motion systems
• MXL trapezoidal tooth profile with a 2.032 mm tooth pitch
• 3,669.79 mm pitch length with 1,806 evenly spaced teeth
• 15 mm belt width for compatible timing pulleys
• Synthetic neoprene construction provides flexibility during repeated pulley rotation
• Positive tooth engagement helps maintain synchronized movement between drive components
• Continuous closed-loop construction eliminates the need to join separate belt ends
• Suitable for replacing matching timing belts in laser machines and precision motion equipment

Product Specifications

Product Type	Synchronous Timing Belt
Belt Designation	1445-MXL
Tooth Profile	MXL (Mini Extra Light), Trapezoidal
Pitch Length	3,669.79 mm (144.48")
Belt Width	15 mm (Approximately 0.59")
Tooth Pitch	2.032 mm (0.080")
Tooth Count	1,806 Teeth
Belt Material	Synthetic Neoprene Rubber
Belt Construction	Closed Loop / Endless
Primary Application	Compatible Timing Belt Drive Systems
SKU	187
Quantity	1 Timing Belt

How the MXL Timing Belt Works

Synchronous timing belts transfer mechanical movement between pulleys using evenly spaced teeth. Unlike smooth belts that rely primarily on friction, toothed belts engage matching pulley grooves to maintain a consistent rotational relationship between connected components.

The MXL profile uses a trapezoidal tooth design with a 2.032 mm pitch. This allows the belt to engage corresponding MXL pulleys for controlled movement. Its flexible neoprene construction allows continuous travel around compatible pulleys during machine operation.

Proper belt tension, pulley alignment, and tooth engagement are important for consistent motion. Worn or incorrectly installed timing belts can cause vibration, skipped teeth, positioning errors, and premature wear of drive components.

Understanding 1445-MXL Belt Specifications

MXL timing belts use a standardized imperial tooth pitch of 0.080 inches, equivalent to 2.032 mm. This measurement represents the spacing between corresponding points on adjacent teeth and must match the timing pulley profile.

The 1445-MXL designation corresponds to a nominal 144.48-inch pitch length, equivalent to 3,669.79 mm, with 1,806 teeth. Pitch length is measured along the belt's pitch line rather than around the outside surface.

When replacing a timing belt, the tooth profile, tooth pitch, pitch length, total tooth count, and belt width must match the existing drive system. Correctly matching these dimensions helps maintain proper pulley engagement and dependable movement.

Confirm Compatibility Before Ordering

Not all timing belts are interchangeable. Before purchasing a replacement, compare the following specifications with your existing belt and pulley system:

• Exact belt designation and tooth profile
• Pitch length and total tooth count
• Tooth pitch and pulley compatibility
• Belt width and pulley groove dimensions
• Belt construction and material requirements
• Required belt tension and drive configuration

MXL timing belts use different tooth spacing and geometry than 3M and GT2 timing belts. These belt types are not interchangeable, even when their dimensions appear similar. Select a replacement that matches the specifications of your machine's motion system.

Installation & Safety

Before replacing a timing belt, turn off the laser machine and disconnect power according to the manufacturer's service instructions. Release belt tension using the appropriate adjustment method and inspect the existing pulleys for worn teeth, damage, or accumulated debris.

Install the replacement belt with its teeth properly seated in the pulley grooves. Align the pulleys and adjust belt tension according to the machine manufacturer's recommendations. Avoid forcing the belt over pulley flanges or applying excessive tension. Verify smooth movement before returning the machine to operation.
