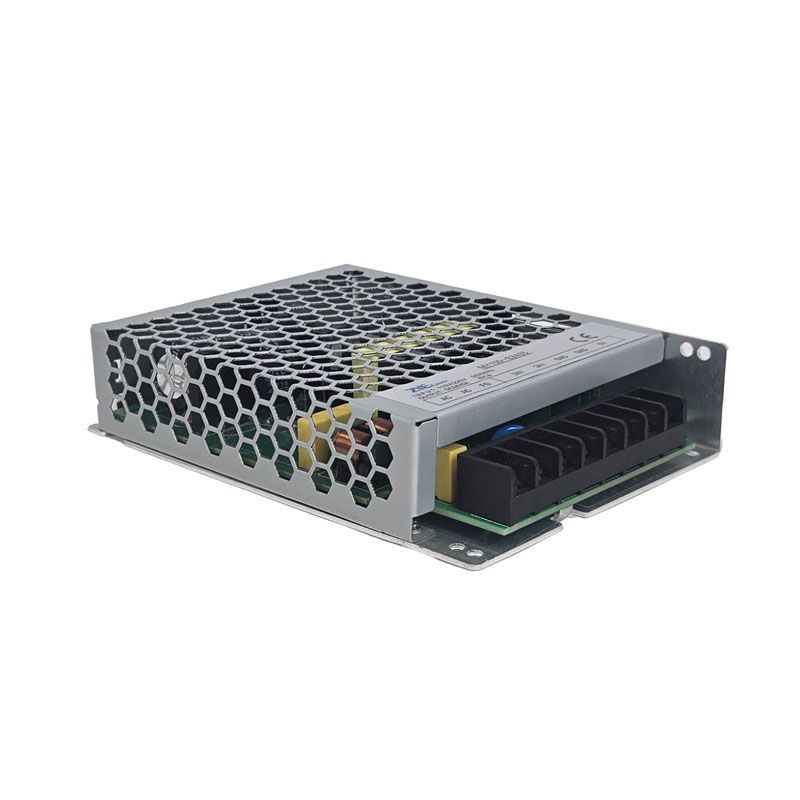

ZYE MY150-S24S5 150W Switching Power Supply – 24V 6A and 5V 1A

The ZYE MY150-S24S5 is a compact 150W switching power supply with 24V DC and 5V DC outputs. It is designed for compatible laser engraving machines, laser cutting machines, and other equipment requiring both voltage levels.

Product Description

The ZYE MY150-S24S5 switching power supply provides 24V and 5V DC power for compatible laser machine components and electronic equipment.

The power supply features a 24V DC output rated at up to 6A, with two 24V connection terminals for easier wiring. It also provides a separate 5V DC output rated at up to 1A.

The compact metal housing measures approximately 134 × 97 × 30 mm, making it suitable for installation inside compatible laser machine electrical cabinets. It accepts either 110V or 220V AC input and operates at an efficiency of at least 90%.

Before ordering, compare the model number, voltage ratings, terminal arrangement, dimensions, and mounting points with your original power supply.

Specifications

• Manufacturer: ZYE
• Model: MY150-S24S5
• Rated power: 150W
• Input voltage: 110/220V AC ±10%
• Efficiency: ≥90%
• 24V output: 24V DC, up to 6A
• 24V connections: Two output terminals sharing the 24V 6A output
• 5V output: 5V DC, up to 1A
• Dimensions: 134 × 97 × 30 mm
• Connection type: Screw terminals
• Enclosure: Vented metal housing

Key Features

• Provides both 24V and 5V DC power
• Two convenient 24V connection terminals
• Compact 150W design
• Compatible with 110V and 220V AC input
• Efficiency rating of 90% or greater
• Designed for compatible laser machines and electronic equipment

Compatibility Notice

This power supply should only replace a unit with matching electrical specifications and connections. Confirm the following before ordering:

• MY150-S24S5 model number
• 24V 6A and 5V 1A output ratings
• 110/220V AC input
• Terminal arrangement
• 134 × 97 × 30 mm dimensions
• Mounting-hole locations

Installation should be performed with the machine disconnected from power. Incorrect wiring may damage the power supply, controller, or other machine components.
