SMD-DM442 Bipolar Microstep Stepper Motor Driver – 20–40VDC

SMD-DM442 Bipolar Microstep Stepper Motor Driver

Restore controlled and accurate axis movement in a compatible laser engraving or cutting machine with the DM442 microstep driver.

The DM442 receives pulse and direction signals from the machine controller and supplies controlled electrical current to a connected bipolar stepper motor. This allows the motor to move a laser gantry or machine axis in small, repeatable steps.

The driver provides selectable motor-current and pulse-per-revolution settings through eight DIP switches. Matching the wiring and switch positions of the original driver helps maintain the machine’s intended movement, travel distance, holding force, and motor temperature.

Key Features

• Bipolar microstep motor driver
• 20–40VDC input
• Seven numbered current settings plus Default
• Peak-current settings from 1.46A to 4.20A
• Corresponding RMS settings from 1.04A to 3.00A
• Fifteen numbered pulse-per-revolution settings plus Default
• Pulse settings from 400 to 25,600 pulses per revolution
• Pulse, direction, and enable signal terminals
• Selectable half or full standstill current
• Auto-tuning function controlled through SW4
• RS232 connection
• Power and alarm indicator
• Integrated heat sink
• Removable terminal connectors

Motor-Current Settings

DIP switches SW1 through SW3 select the motor-current setting.

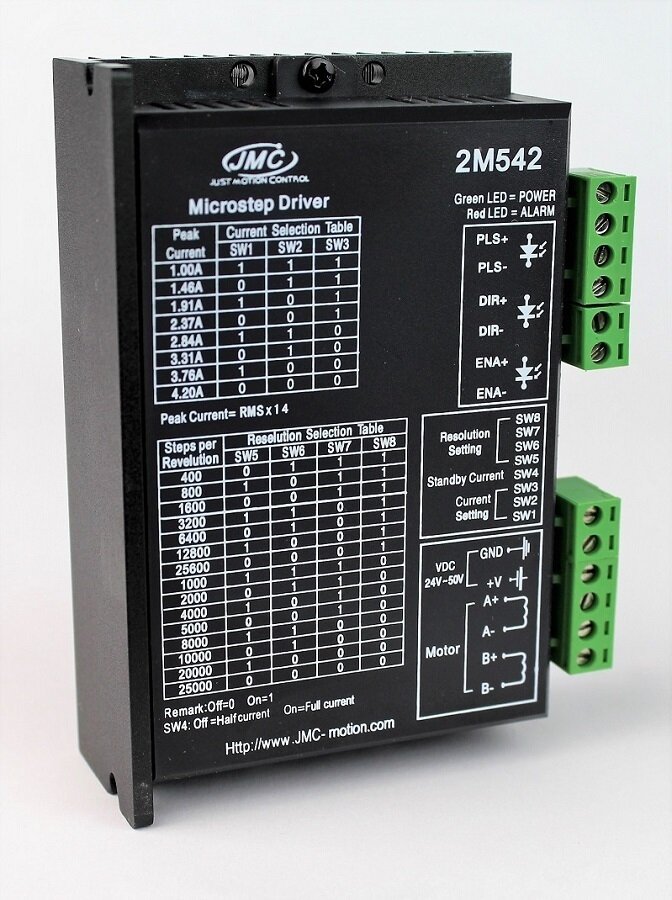

The diagram printed on the DM442 lists both peak and RMS current. It also states that peak current equals RMS current multiplied by approximately 1.4.

Peak Current	RMS Current	SW1	SW2	SW3
Default	Default	ON	ON	ON
1.46A	1.04A	OFF	ON	ON
1.91A	1.36A	ON	OFF	ON
2.37A	1.69A	OFF	OFF	ON
2.84A	2.03A	ON	ON	OFF
3.31A	2.36A	OFF	ON	OFF
3.76A	2.69A	ON	OFF	OFF
4.20A	3.00A	OFF	OFF	OFF

The exact current used by the Default setting is not identified on the printed diagram. Do not assume that Default represents a particular amperage.

A current setting that is too low may result in weak movement, stalling, or missed steps. A setting that is too high may cause unnecessary motor and driver heat.

A direct replacement should normally use the same SW1 through SW3 positions as the original driver.

SW4 Current and Auto-Tuning Functions

The diagram identifies two functions for SW4.

Standstill Current

• SW4 OFF: Half current
• SW4 ON: Full current

The half-current setting reduces the current supplied to the motor while the axis is stopped. This can help reduce motor heat during idle periods.

Auto-Tuning

The diagram states:

Change SW4 two times within one second to activate auto-tuning.

The motor or connected axis may move or vibrate during this process. Make sure the axis is clear before activating auto-tuning.

Pulse-Per-Revolution Settings

DIP switches SW5 through SW8 determine how many input pulses are required for one complete motor revolution.

The following table is transcribed directly from the diagram printed on the DM442.

Pulses per Revolution	SW5	SW6	SW7	SW8
Default	ON	ON	ON	ON
400	OFF	ON	ON	ON
800	ON	OFF	ON	ON
1,600	OFF	OFF	ON	ON
3,200	ON	ON	OFF	ON
6,400	OFF	ON	OFF	ON
12,800	ON	OFF	OFF	ON
25,600	OFF	OFF	OFF	ON
1,000	ON	ON	ON	OFF
2,000	OFF	ON	ON	OFF
4,000	ON	OFF	ON	OFF
5,000	OFF	OFF	ON	OFF
8,000	ON	ON	OFF	OFF
10,000	OFF	ON	OFF	OFF
20,000	ON	OFF	OFF	OFF
25,000	OFF	OFF	OFF	OFF

The exact pulses-per-revolution value used by the Default setting is not identified on the printed diagram.

A replacement driver should normally use the same SW5 through SW8 positions as the original. Changing these switches without updating the machine controller may change the axis travel distance and positioning.

Control-Signal Terminals

The signal terminals printed on the driver are:

• PUL+: Positive pulse connection
• PUL−: Negative pulse connection
• DIR+: Positive direction connection
• DIR−: Negative direction connection
• ENA+: Positive enable connection
• ENA−: Negative enable connection

The enable terminals may not be used in every machine configuration. Match each connection to the original driver rather than assuming every terminal must be wired.

Power and Motor Terminals

The high-voltage and motor terminals printed on the driver are:

• GND: Negative DC power connection
• +VDC: Positive DC power connection
• A+: Motor phase A positive
• A−: Motor phase A negative
• B+: Motor phase B positive
• B−: Motor phase B negative

The DC power supply must remain within the printed 20–40VDC input range.

The motor wires must be connected as the correct A and B phase pairs. Incorrect phase pairing may cause the motor to vibrate, run roughly, move incorrectly, or fail to rotate.

Product Specifications

• Rabbit Laser USA part number: SMD-DM442
• Driver model: DM442
• Product type: Bipolar microstep motor driver
• Input voltage: 20–40VDC
• Numbered peak-current settings: 1.46–4.20A
• Numbered RMS-current settings: 1.04–3.00A
• Current selections: Seven numbered settings plus Default
• Current-setting switches: SW1 through SW3
• Standstill-current selection: Half or full current
• Auto-tuning control: SW4
• Pulse selections: Fifteen numbered settings plus Default
• Numbered pulse range: 400–25,600 pulses per revolution
• Pulse-setting switches: SW5 through SW8
• Control inputs: Pulse, direction, and enable
• Signal terminals: PUL+, PUL−, DIR+, DIR−, ENA+, and ENA−
• Motor outputs: A+, A−, B+, and B−
• Power terminals:+VDC and GND
• Communication connection: RS232
• Indicator: PWR/Alarm
• Approximate dimensions: 4.65 × 2.97 × 1.30 inches
• Approximate weight: 9 ounces
• Heat sink and connectors: Integrated

The dimensions and weight are currently listed on the Rabbit Laser USA product page.

Compatibility Notice

Stepper motor drivers that look similar may use different input voltages, current tables, pulse settings, signal terminals, or switch functions.

Before ordering, compare the following with the original driver:

• DM442 model number
• 20–40VDC input marking
• SW1 through SW4 positions
• SW5 through SW8 positions
• Current requirements
• Pulse-per-revolution setting
• PUL, DIR, and ENA terminal arrangement
• +VDC and GND power connections
• Motor phase connections
• Physical dimensions
• Mounting locations

Do not select a replacement based only on the appearance of the enclosure.

Important Installation Information

Disconnect the laser machine from electrical power before inspecting or replacing the stepper motor driver.

Photograph every wire and DIP-switch position before removing the original driver. Label the wires so they can be returned to the correct terminals.

Confirm the +VDC and GND connections before applying power. Reversing the DC input polarity may damage the driver.

Never connect or disconnect the stepper motor while the driver is powered.

Mount the driver securely and leave enough open space around the heat sink for heat to escape. After installation, test the axis at a low speed before returning the machine to regular operation.

Troubleshooting a Motion Problem

A motion problem may cause symptoms such as:

• An axis that does not move
• A motor that vibrates without turning
• Jerky or uneven movement
• Missed steps
• Incorrect travel distance
• Movement in only one direction
• Excessive motor or driver heat
• An active alarm indicator
• Intermittent movement

These symptoms do not always mean the driver has failed. Similar problems can be caused by incorrect switch settings, loose wiring, incorrect motor phase pairing, a damaged motor cable, power-supply trouble, mechanical binding, controller settings, or a damaged stepper motor.

Confirm Compatibility Before Ordering

Not sure whether the SMD-DM442 is correct for your laser machine? Contact Rabbit Laser USA with your machine model and clear photos of the original driver, wiring terminals, and all eight DIP-switch positions. Our technical support team can help confirm compatibility before you order.
