CIC-4 4-Pin Aviation Connector Set – Male & Female
The CIC-4 is a 4-pin circular aviation-style connector set for compatible laser machines, rotary attachments, and electrical accessories. This two-piece set includes a male panel-mount connector and a matching female cable-end plug.

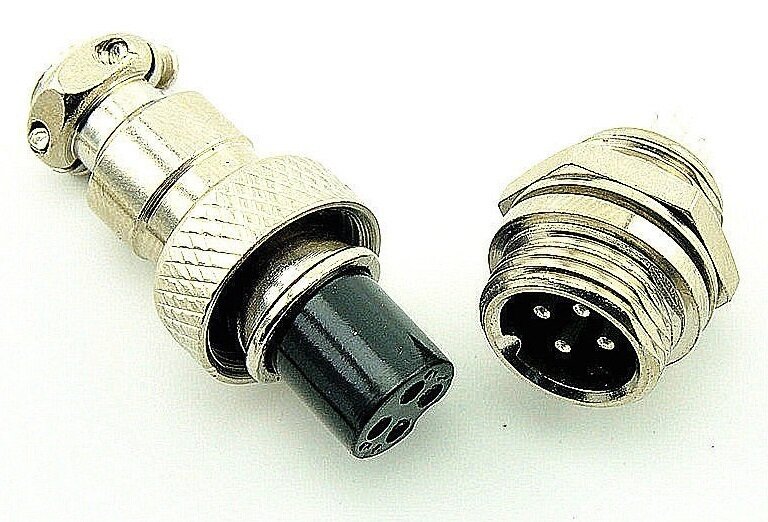

The male connector features four exposed electrical pins and a threaded mounting body for installation through an equipment panel. The female cable connector has four recessed contacts, a metal housing, and a threaded locking collar for securing the connection.
These connectors can be used to build or repair compatible four-wire connections, including certain rotary attachment connections on CO2 laser machines. Electrical compatibility and pin assignments must be verified for the equipment being connected.
Package includes one matching male and female connector pair. Wiring and cable are not included.
Key Features
4-Pin Connection:
Provides four electrical contacts for compatible multi-wire connections.
Male & Female Pair:
Includes a panel-mount connector with male pins and a matching female cable-end plug.
GX16-Style Construction:
Circular metal connector design commonly used in laser machines and industrial control equipment.
Threaded Locking Collar:
Helps secure the cable connector to the panel-mounted connection.
Panel-Mount Design:
Male connector features a threaded body and mounting hardware for installation through a suitable equipment panel.
Solder Termination:
Connector contacts are designed for soldering electrical wires during assembly.
Rotary Attachment Applications:
Can be used with certain four-wire rotary connections when connector dimensions, electrical ratings, and wiring match.
Replacement Component:
Suitable for replacing matching connectors or building compatible equipment cables.
Product Specifications
Product Type
Aviation Connector Set
Model
CIC-4
Connector Family
GX16-Style Circular Connector
Contact Count
4
Connector Configuration
Male Panel Mount + Female Cable Plug
Contact Gender
Male Pins / Female Sockets
Coupling Method
Threaded Locking Collar
Electrical Termination
Solder
Connector Housing
Metal with Black Insulating Inserts
Applications
Compatible Laser Rotary Attachments, Electrical Accessories, and Control Connections
Quantity Included
1 Male/Female Connector Pair
Rabbit Laser USA SKU
133
Compatibility
The CIC-4 connector set is intended for compatible equipment requiring a four-contact circular aviation-style connection. Applications may include rotary attachments, motor connections, and other electrical accessories used with laser engraving and cutting machines.
Before ordering, compare your existing connector with the replacement, including:
Number and arrangement of electrical contacts
Connector shell diameter and mounting dimensions
Male and female contact configuration
Threaded coupling and connector keying
Required voltage and current ratings
Equipment wiring diagram and pin assignments
Important:
Not every four-wire rotary attachment uses the same connector or pin configuration. A matching four-pin connector does not guarantee compatibility with your machine or motor driver.
The CIC-4 connector set is supplied as loose connector components and does not include a prewired cable.
Installation & Safety
Disconnect all electrical power before installing or replacing electrical connectors.
Verify connector dimensions, contact arrangement, and electrical requirements before installation.
Mount the panel connector securely through a properly sized equipment opening.
Solder wires to the correct terminals according to the equipment manufacturer's wiring diagram.
Use appropriate wire insulation and secure the cable using the connector's strain-relief components.
Check continuity and verify that no unintended shorts are present before connecting equipment.
Align the male and female connectors correctly before tightening the threaded locking collar.
Confirm proper equipment operation before returning the machine or attachment to service.
Safety Note:
The electrical ratings and safety certifications of this specific connector set have not been independently verified. Confirm suitability for the intended circuit before installation. Do not bypass machine safety interlocks.
Need Help Finding the Right Connector?
Rabbit Laser USA supplies electrical connectors, replacement components, and technical support for CO2 laser engraving and cutting machines. If you're unsure whether this connector matches your rotary attachment or laser machine, contact our team with your equipment model and a photograph of the existing connection.
