Bi-Polar Stepper Motor Driver (Part Number SMD-M860)

Bi-Polar Stepper Motor Driver (Part Number SMD-M860)

Store / Motion Control
$100.00
In stock
Product Details

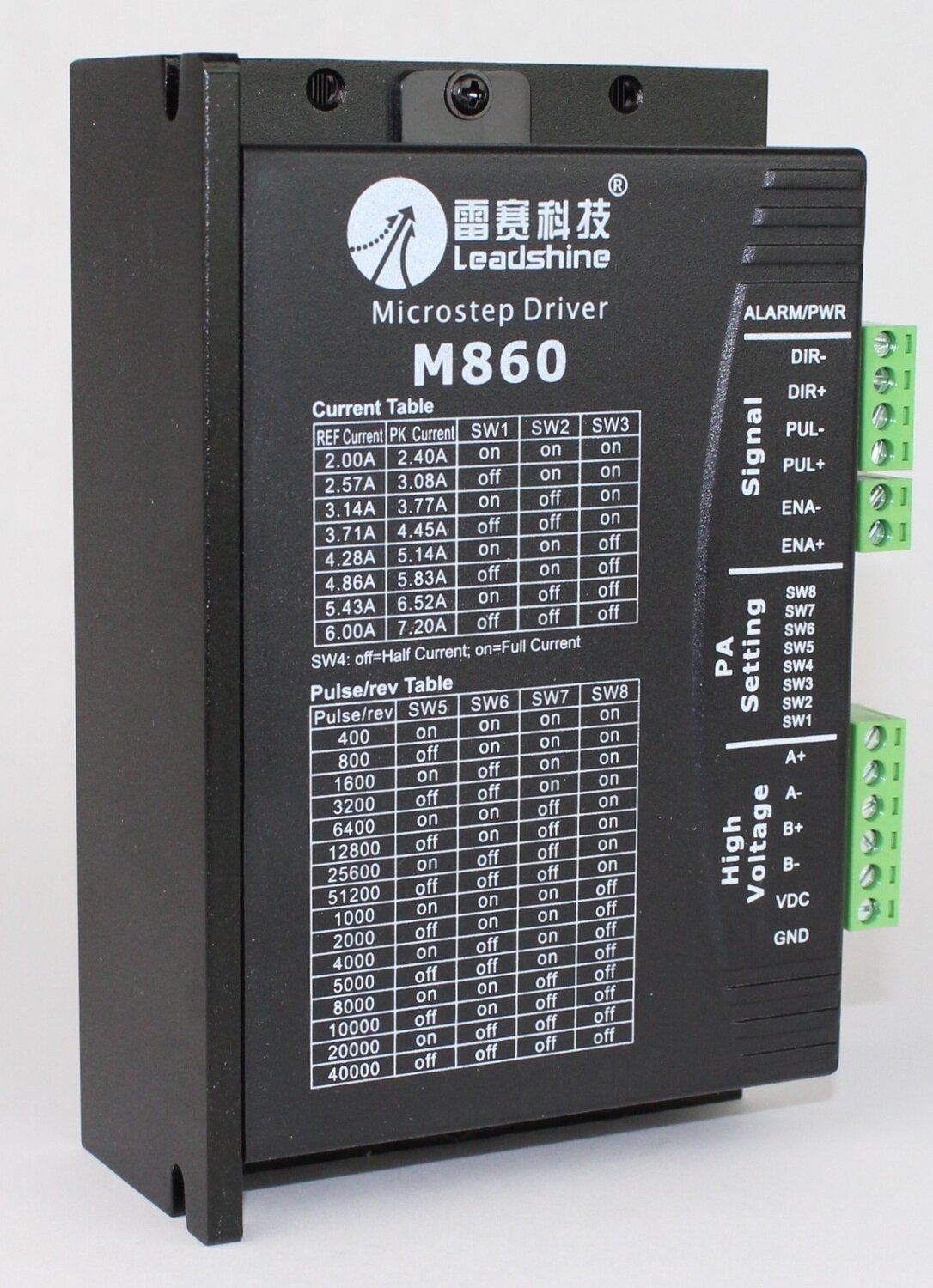

Introducing our Bi-Polar Stepper Motor Driver (Part Number SMD-M860), a powerful solution for your stepper motor control needs. With integrated heatsink and included connectors, this driver ensures ease of installation and efficient heat dissipation.

Specifications:

Feature Description
Input Power Voltage 24-80 VDC
Output Current Range 2.4 to 7.2A
Noise Level Extra low
Motor Heating Extra low
Smoothness Extra smooth
Anti-Resonance Effective at low to middle speeds
Microstepping Options 16 options via DIP switches, ranging from 1/2 to 1/200 microstepping
Output Current Options 8 options via DIP switches, from 2.4 to 7.2A
Current Control Technology Implements 3-state current control technology for low motor heating
Supported Modes PULSE/DIRECTION and CW/CCW modes
Self-Adjustment Technology Ensures optimal performance through automatic adjustment
Pulse Input Frequency Up to 300 KHz
Input Compatibility TTL compatible and optically isolated input
Idle-Current Reduction Automatically reduces idle current for energy efficiency
Motor Compatibility Suitable for 2-phase and 4-phase motors (A-, A+, B-, B+)
Protection Features Short-voltage, over-voltage, over-current, and over-temperature protection
Certification UC/CUL certified
Dimensions 5.63 X 3.82 X 1.89 inches; 17.7 oz

This driver offers precision control, reliability, and safety, making it an ideal choice for a wide range of applications. Unlock the full potential of your stepper motor systems with the SMD-M860.
